RECT™ RS-8869C5

RECT-ID:2561

RECT™ RS-8869C5

RECT-ID: 2561
Ready for shipment in about 2-4 workdays
Express-shipping: start request...

Short 4U Rack Server with Intel Xeon E-2200 Processor

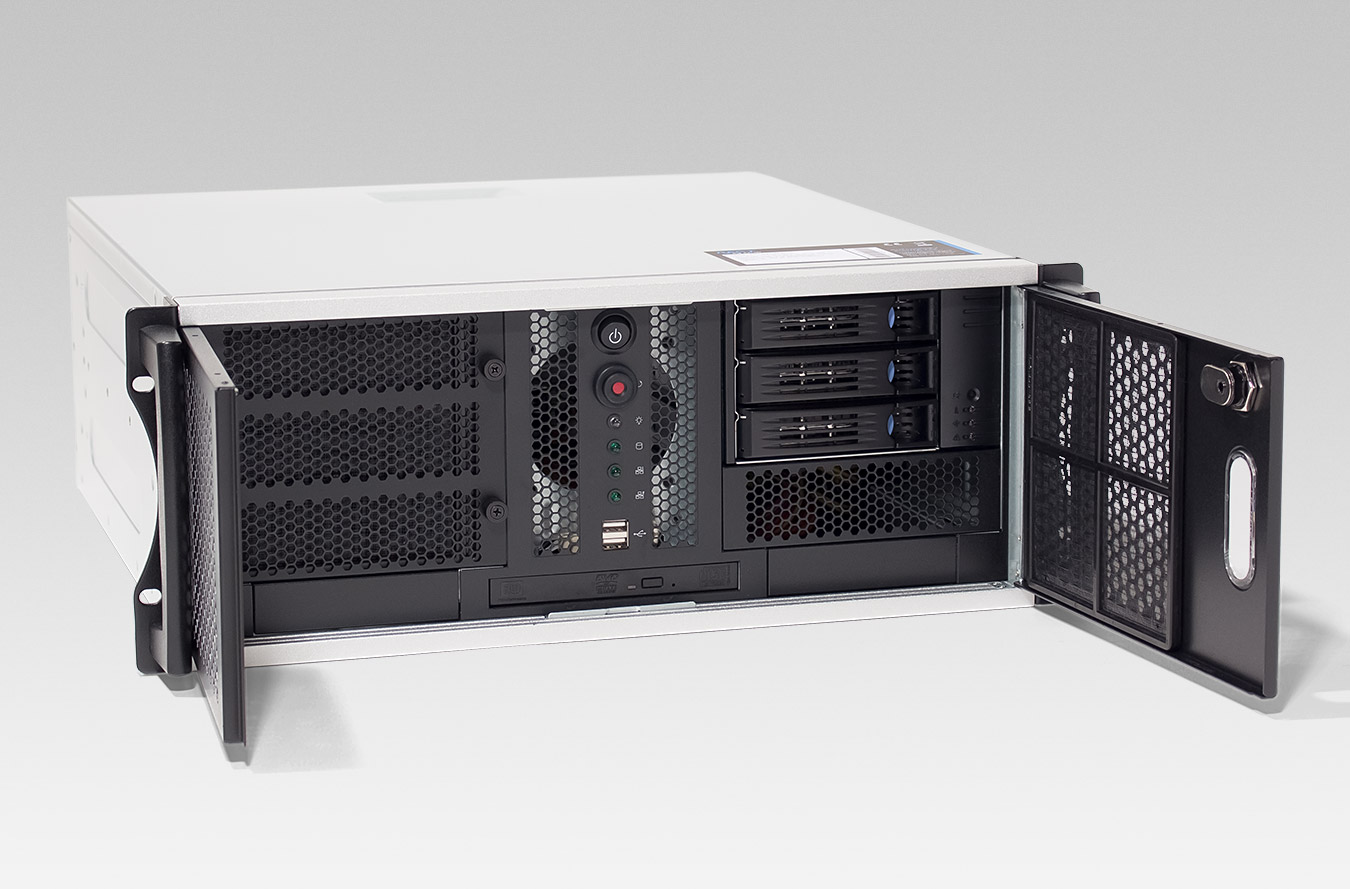

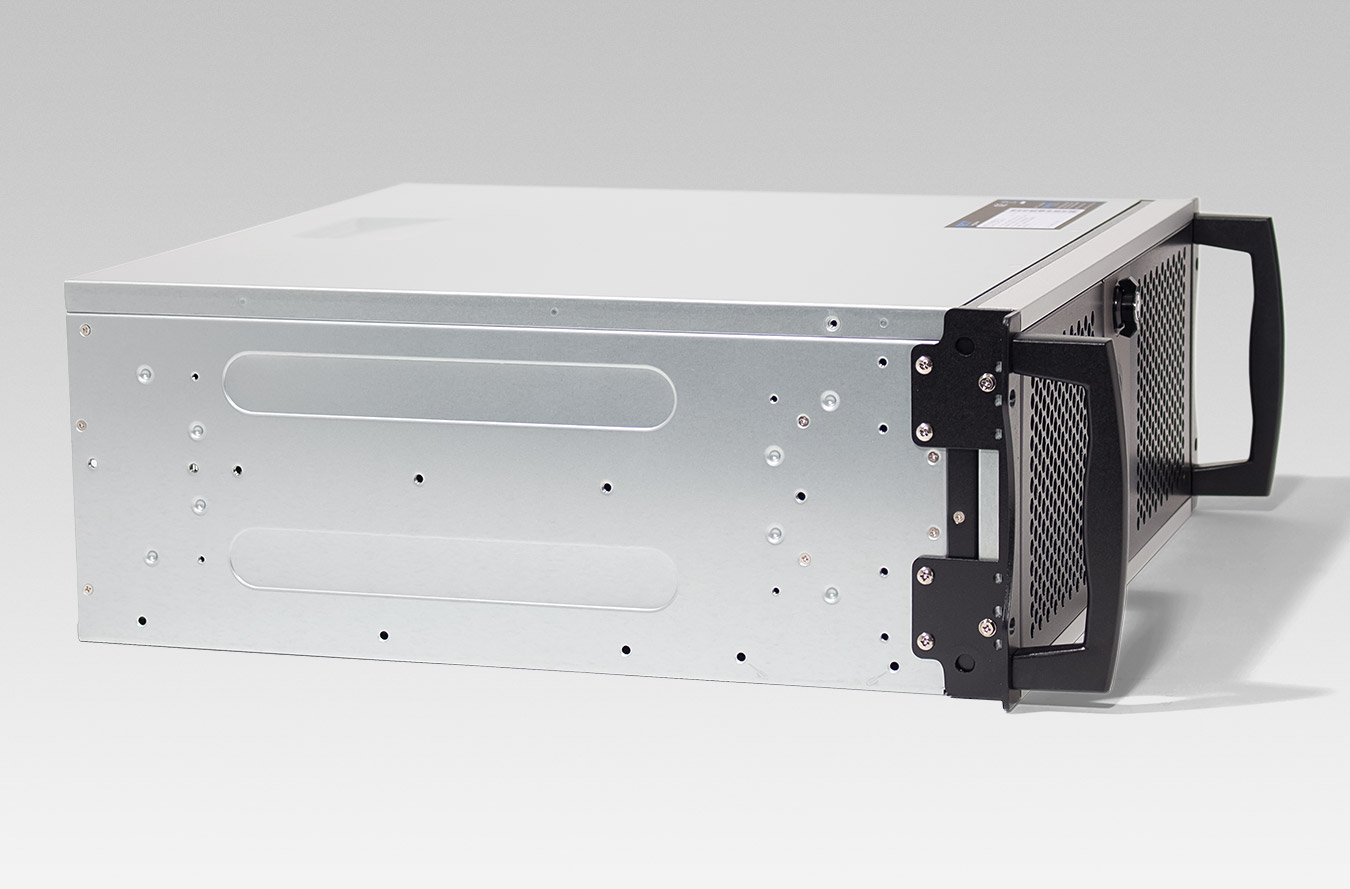

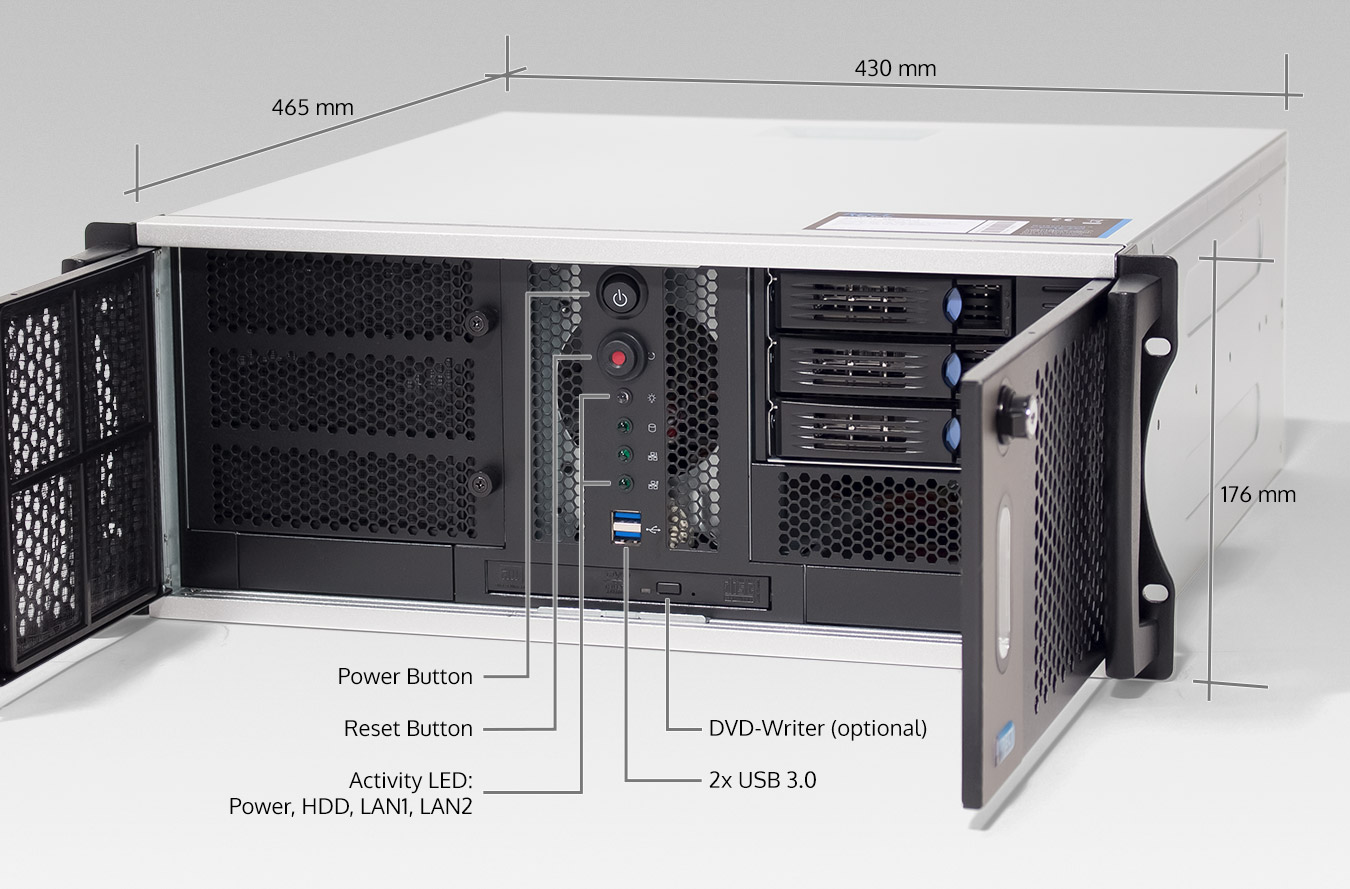

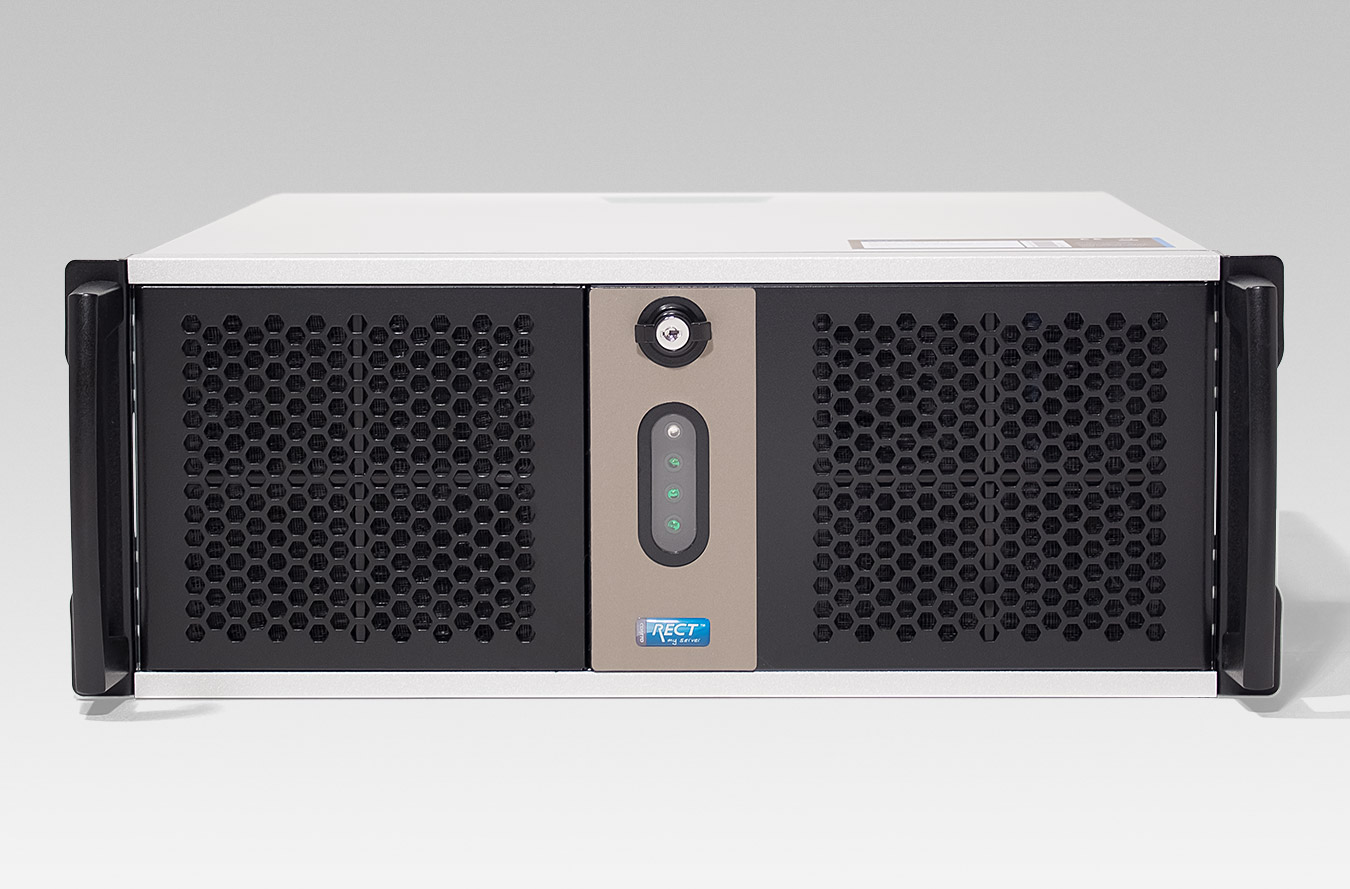

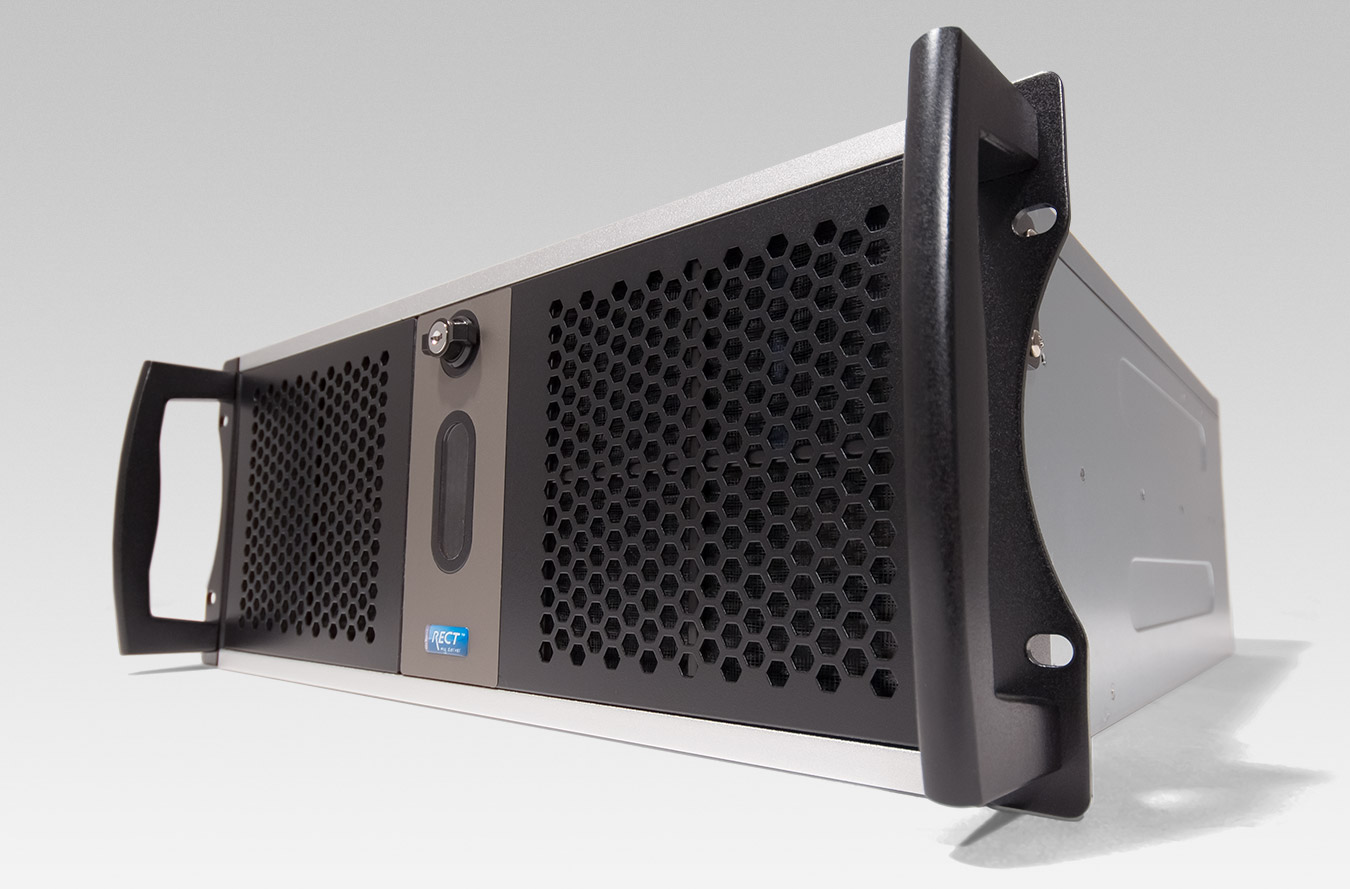

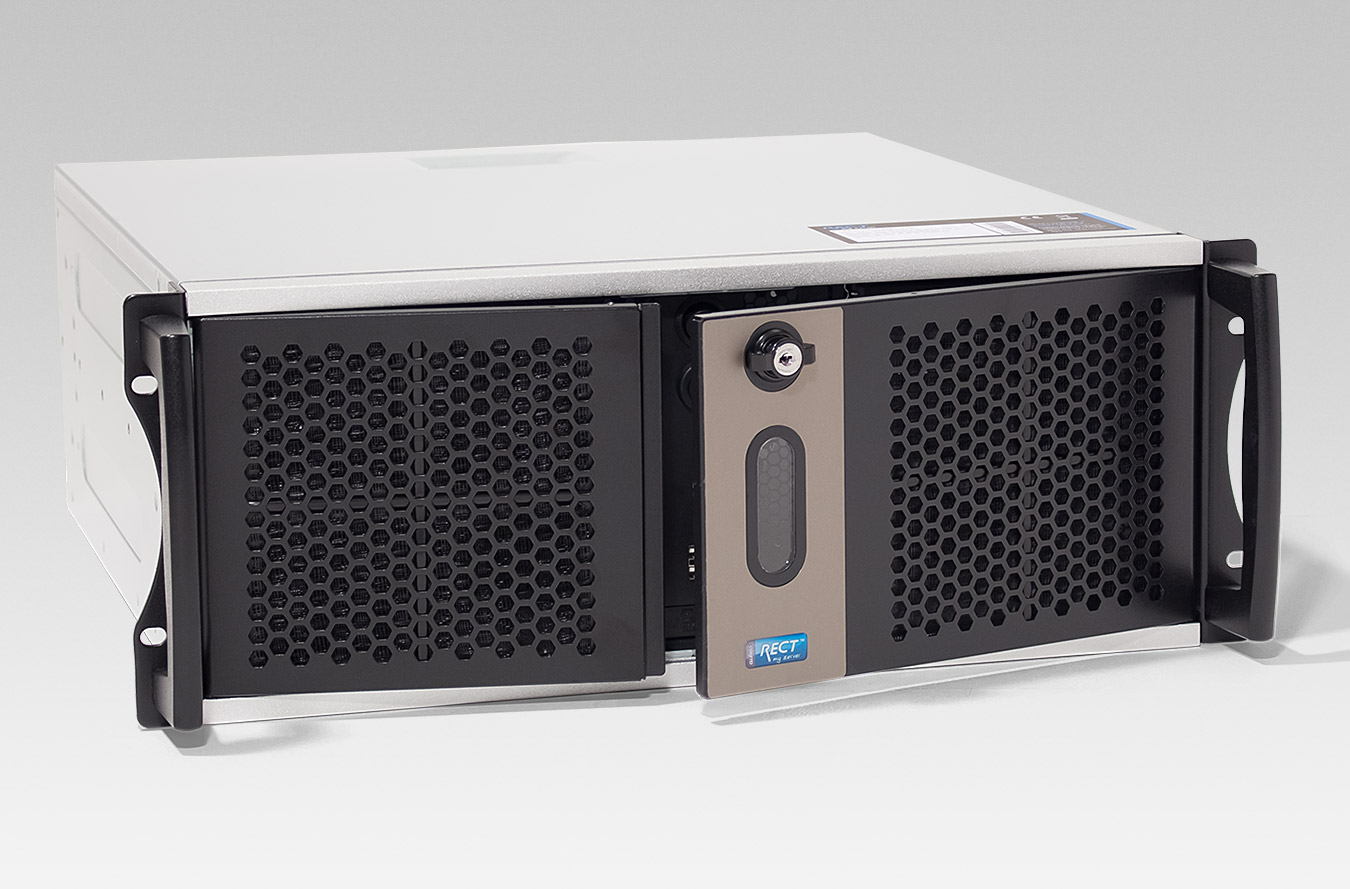

  • short (only 445 mm), High-quality 19" Rack Chassis with lockable front door
  • Next generation Intel microarchitecture "Coffee Lake-ER" gives you even more cores, computing power and improved integration
  • Easy to service and manage

KeyFacts

  • latest Intel® Xeon® Single-CPU technology "Coffee Lake-ER" on LGA 1151
  • up to Intel® Xeon® E-2288G with 3.70 GHz (up to 5.00 GHz with TurboBoost), 8 Cores, 16 Threads and 16 MB Smart Cache
  • Server-Mainboard with Intel® C242/C246 chipset
  • up to 128 GB DDR4-RAM ECC with 2666 MHz
  • up to 90 TB SAS/SATA 6Gb/s HDD storage
  • RAID-Technology (Level: 0, 1, 5 and 10)
  • Remote Management features with IPMI 2.0

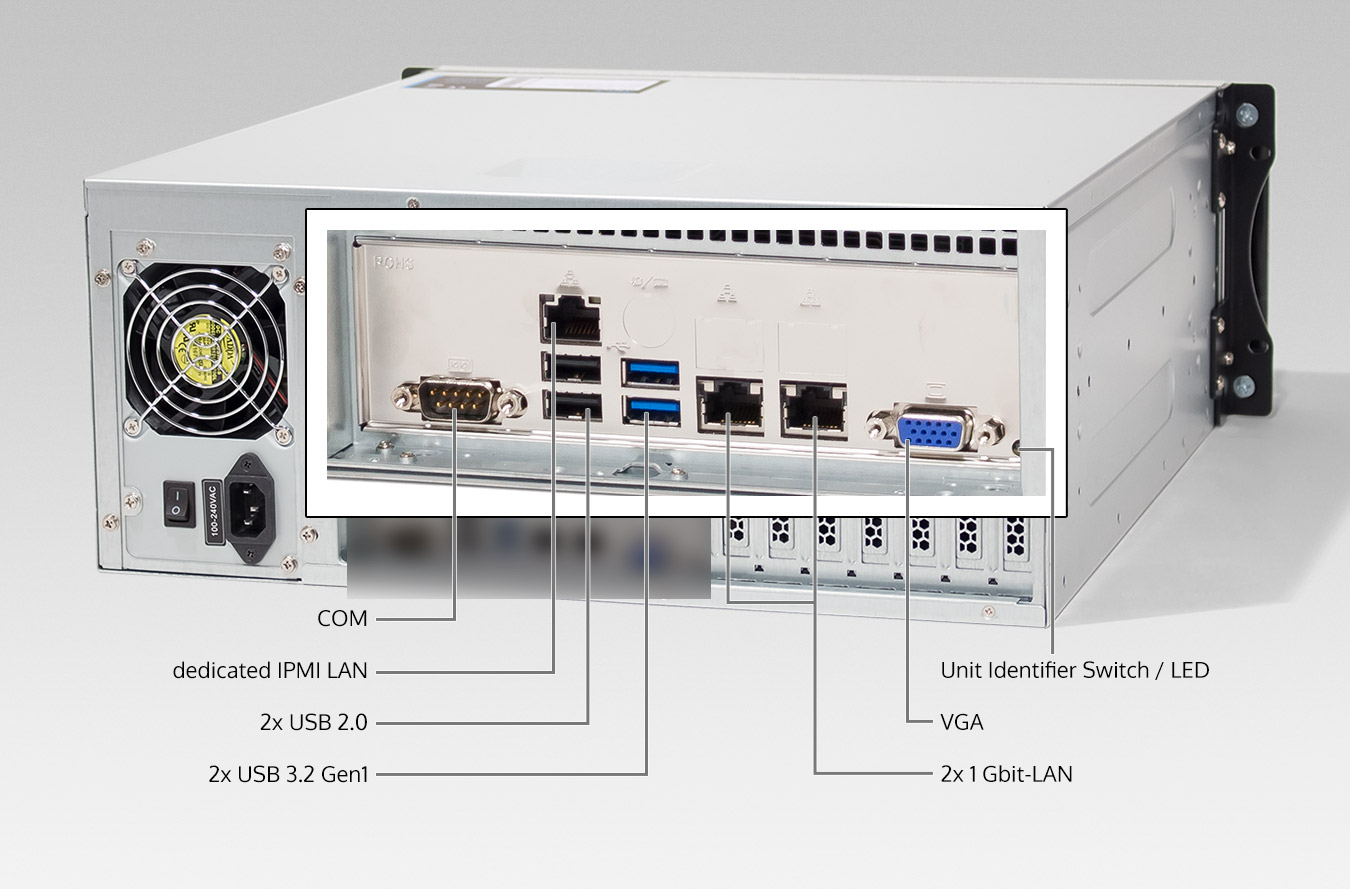

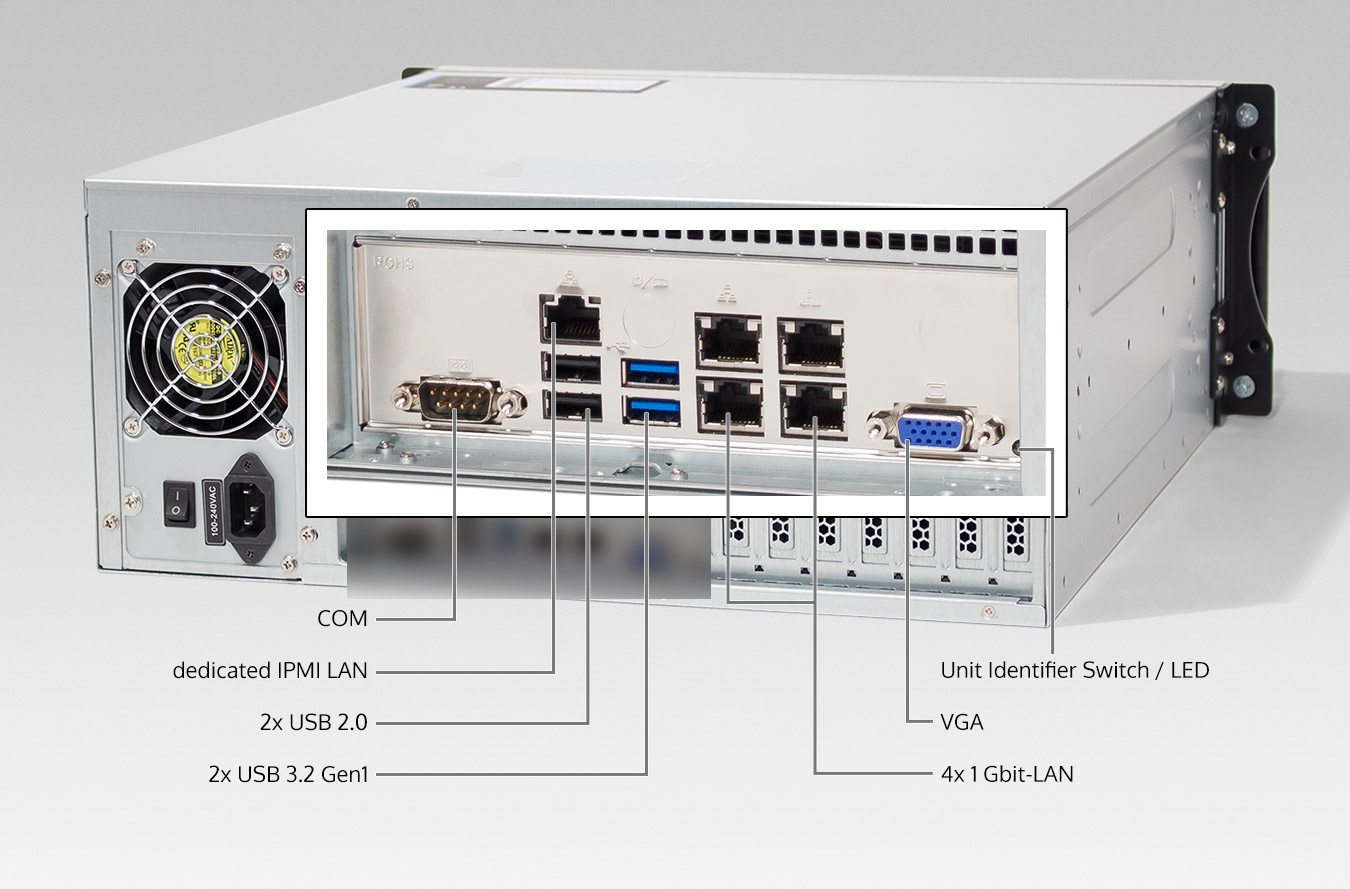

  • 2x or 4x 1Gbit LAN ports onboard
  • 4x USB 3.0, 2x USB 2.0
  • Single or redundant power supply

Software

  • Empfohlenes Betriebssystem:
    Microsoft® Windows® Server 2019
  • Linux (Red Hat Linux, SUSE Linux, Fedora, Ubuntu LTS, Debian, CentOS, FreeBSD)

Short 4U Rack Server with Intel Xeon E-2200 Processor

  • short (only 445 mm), High-quality 19" Rack Chassis with lockable front door
  • Next generation Intel microarchitecture "Coffee Lake-ER" gives you even more cores, computing power and improved integration
  • Easy to service and manage

KeyFacts

  • latest Intel® Xeon® Single-CPU technology "Coffee Lake-ER" on LGA 1151
  • up to Intel® Xeon® E-2288G with 3.70 GHz (up to 5.00 GHz with TurboBoost), 8 Cores, 16 Threads and 16 MB Smart Cache
  • Server-Mainboard with Intel® C242/C246 chipset
  • up to 128 GB DDR4-RAM ECC with 2666 MHz
  • up to 90 TB SAS/SATA 6Gb/s HDD storage
  • RAID-Technology (Level: 0, 1, 5 and 10)
  • Remote Management features with IPMI 2.0
  • 2x or 4x 1Gbit LAN ports onboard
  • 4x USB 3.0, 2x USB 2.0
  • Single or redundant power supply

Software

  • Empfohlenes Betriebssystem:
    Microsoft® Windows® Server 2019
  • Linux (Red Hat Linux, SUSE Linux, Fedora, Ubuntu LTS, Debian, CentOS, FreeBSD)
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Loading...

Silent Edition

At the Silent Edition of this Rack Server a special optimized fan and cooling system is applied. Reduction of fans and active control allows the application of the server in the immediate or even in the direct vicinity of a workplace.

  •
  •

Processor

  •
  •
  •
  •
  •
  •
  •
  •
  •

Memory

  •
  •
  •
  •
  •
  • Need more?   show more options
    Too much?   show less options

Mainboard

  •
  •

Remote Management Interface on Board

IPMI 2.0, KVM over LAN, Virtual Media over LAN, Remote Power on/off and Reset, Remote Hardware Monitoring, Embedded Web-Server

  •
  •

HDD HotSwap-tray

suitable for 2.5" and 3.5" HDDs, 6Gb/s SAS/S-ATA backplane

  •
  •
  •

Drives

    • M.2 NVMe SSD
      M.2 NVMe SSDs are very compact and fast plug-in cards that are connected via PCI-Express (up to 32 Gbit/s) on the motherboard. They are perfectly suited for use as boot drives or OS installation devices.
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    • Enterprise SSDs with optimized performance for read-intensive applications
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    • Enterprise SSDs with optimized performance for read and write intensive applications
    •
    •
    •
    •
    •
    •
    •
    •
    •

    2.5" SSDs, mounted internal, (fixed), connected with the mainboard

    • SATA SSD
    • Optimized performance for read-intensive applications
    •
    •
    •
    •
    •
    •
    • Excellent performance combined with very high endurance. Optimized performance for read and write intensive applications
    •
    •
    •
    •
    •
    • Disk on Module
      SATA DOMs (Disk On Module) are small flash modules that can be connected directly to the SATA port of the mainboard. They are perfectly suited for use as boot drives or OS installation devices.
    •
    •
    •

    Controller

    • Onboard controller
      Host-based solution with basic requirements - for price-optimized entry.
    •
    • Onboard controller
      Host-based solution with basic requirements - for price-optimized entry.
    •
    • RAID-Controller
      Ideal for 12 Gbps performance-hungry systems demanding high I/O transaction and high bandwidth processing without compromising maximum data protection.
    •
    •
    •
    • Need more?   show more options
      Too much?   show less options

    Controller Cache Protection

    Short-term data storage to protect data in RAID-Cache in case of power outage.

    •
    •

    RAID configuration

    •
    •

    Network

    •
    •
    •
    •
    •
    •
    •
    •
    •
    • Copper patch cable (RJ-45), Cat.6A, 500MHz, halogen free
      Patch cable in the highest quality for a professional cabling in Gigabit and 10 Gigabit range (up to 100m).
      Cable sheath halogen free, full copper core, S/FTP (PiMf) 4x2xAWG26/7, gold plated contacts.
      For use in data centers and server racks
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •
    •

    Optical disc drive

    •
    •

    Power supply

    •
    •

    Mounting

    •
    •
    •
    •

    Tape Streamer (LTO)

    Streamers are generally special orders and therefore cannot be refunded within our money-back guarantee for new customers. Please ask our sales consultants for details.

    •
    •
    •
    •

    Streamer Cartridges

    •
    •
    •
    •

    Streamer Cartridges WORM

    LTO Ultrium WORM (Write Once, Read Many) media cartridges are available to meet today’s stringent regulatory and compliance requirements. Combined with native AES 256-bit encryption, WORM cartridges physically prevent data from being overwritten or tampered with, providing a reliable, accurate and scalable data integrity solution.

    •
    •
    •

    Uninterruptible power supply (UPS)

    Protected from power interruptions?
    Choose from a wide variety  RECT Accessories - UPS

      Operating System

      The selected operating system is factory-installed and includes 30 days installation support, by phone or email.
      Further MS editions plus MS-Open licenses can be found under RECT Accessories. Further language editions on demand.

      language:

      •
      •
      •
      •
      •
      •
      •
      •
      •
      • License Hints for Windows Server 2016/2019

        For correct licensing of the Standard Edition and Datacenter Edition with the chosen precessor equipment – - – a core license is required.

      Operating System CALs

      • Standard CALs for Device and/or User
        In addition to the server licenses, you need licenses for all clients accessing the server (Client Access Licenses). These CALs may be licensed by users (User CALs) or devices (Device CALs). A User CAL is recommended when a user accesses the server with different devices. A Device CAL is favourable when one device is used by different users to access the server. All CALs are downward compatible with earlier releases of Microsoft Server.
      •
      •
      •
      •
      • Remote Desktop Services CALs
        The Microsoft Open License program is a simple, cost-effective way for small and midsize organizations to acquire the latest Microsoft technology. The initial order by new customers has to comprise at least 5 licenses. If you need less than 5 licenses in total, the remainder has to be made up by fill-up licenses to comply with this requirement. RDS CALs are backward compatible with previous Microsoft Windows Server versions.
      •
      •

      RECT Smart Warranty .HDD

      The best choice for sensitive data! With the RECT "Smart Warranty .HDD" you yourself can decide how you want to dispose of a faulty hard drive because you can simply keep that hard drive while we will take the necessary replacement directly to you.
      Note: The capacity and not the number of the inserted hard drives is decisive. In case you need hard drives with different capacities within one configuration, the chosen option for "Smart Warranty .HDD" has to comply with the biggest hard drive in it. For all details regarding the transaction, please see the service conditions for this service. SSDs are excluded from the RECT "Smart Warranty .HDD"

      •
      • 36 months runtime for all 3.5" hard drives of the server
      •
      •
      •
      •
      •

      Service & Support Level

      Location:

      • Bring-In Warranty
        Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
        Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
      •
      • Pick-Up Warranty
        Technical support: by phone and e-mail, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
      •
      •
      •
      •
      •
      •
      • On-Site (3BD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
      •
      •
      • On-Site (NBD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
      •
      •

      Alternativen:

      RECT™ RS-8869C5

      Main configuration
      908.00
      Configuration:
      Complete Configuration
      Current price


      Main configuration: 908.00 €
      Complete Configuration: 0,00
      Current price: 0,00   (Plus VAT)
      RECT-ID: 2561
      Last update: 21.09.2021
