RECT™ RS-8594N12

RECT-ID:2691

RECT™ RS-8594N12

RECT-ID: 2691
Ready for shipment in about 7-10 workdays
Express-shipping: start request...

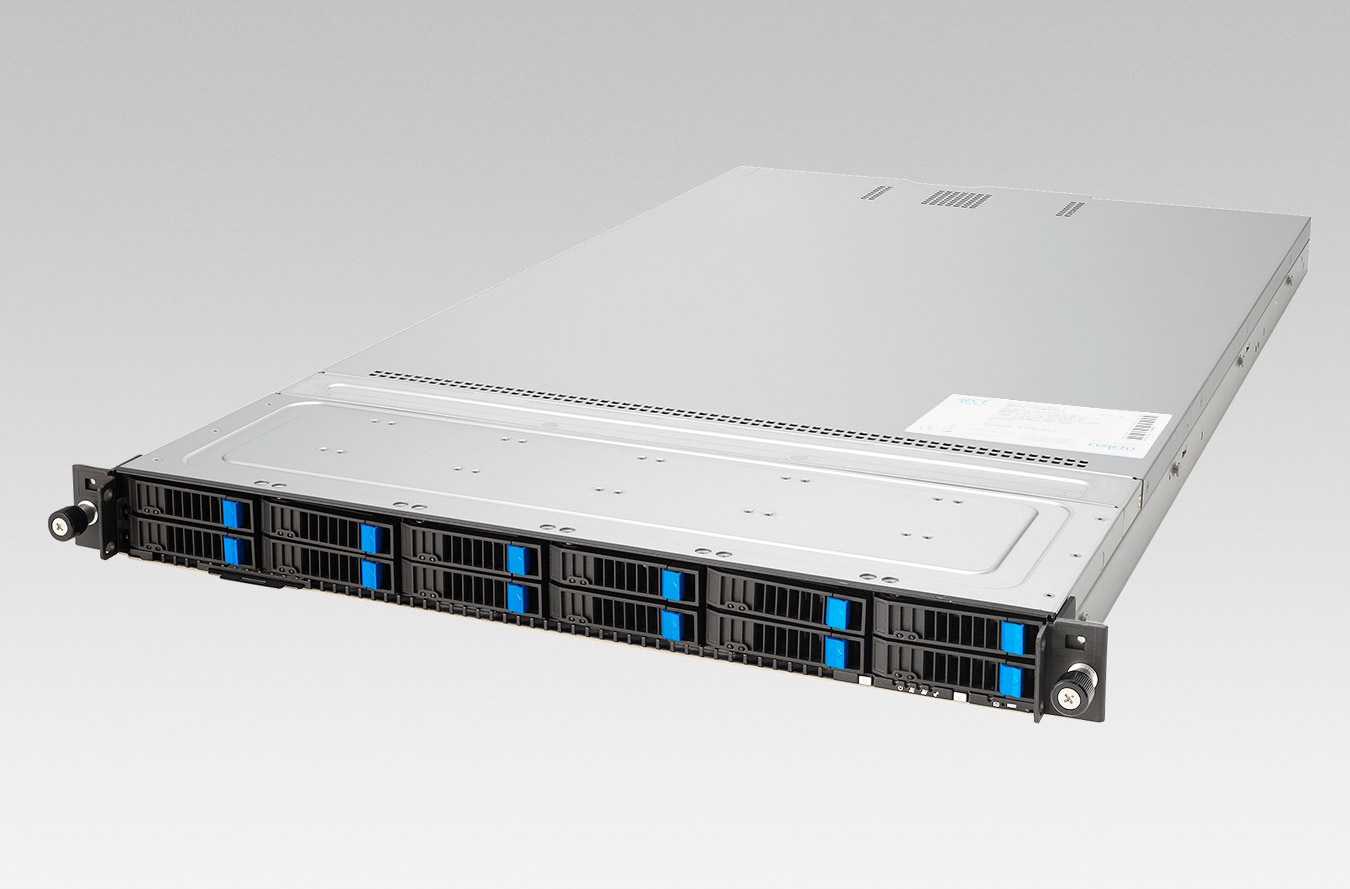

1U Rack Server with brand-new Intel Xeon 6 CPUs up to 288 cores

  • equipped with the all new Intel® Xeon® 6 Processors (Granite Rapids & Sierra Forest)
  • based on the latest Intel Server System-on-Chop „Birch Stream“
  • featuring widespread Remote Management functions
  • two PCIe 5.0 x16 slots (FHHL) and two OCP 3.0 slots

KeyFacts

  • driven by two CPUs, each up to 88 PCIe Lanes, up to 144 Cores, up to 4.00 GHz (Turbo up to 4.30 GHz), up to 336 MB L3-Cache and DDR5-6400 ECC RAM over 8-channel
  • scalable memory up to 4 TB DDR5-6400 ECC Reg. RAM
  • up to 368 TB NVME storage
  • onboard two M.2 interfaces for NVMe SSDs (PCIe 5.0 x2)
  • Remote Management Features (ASMB12-iKVM)

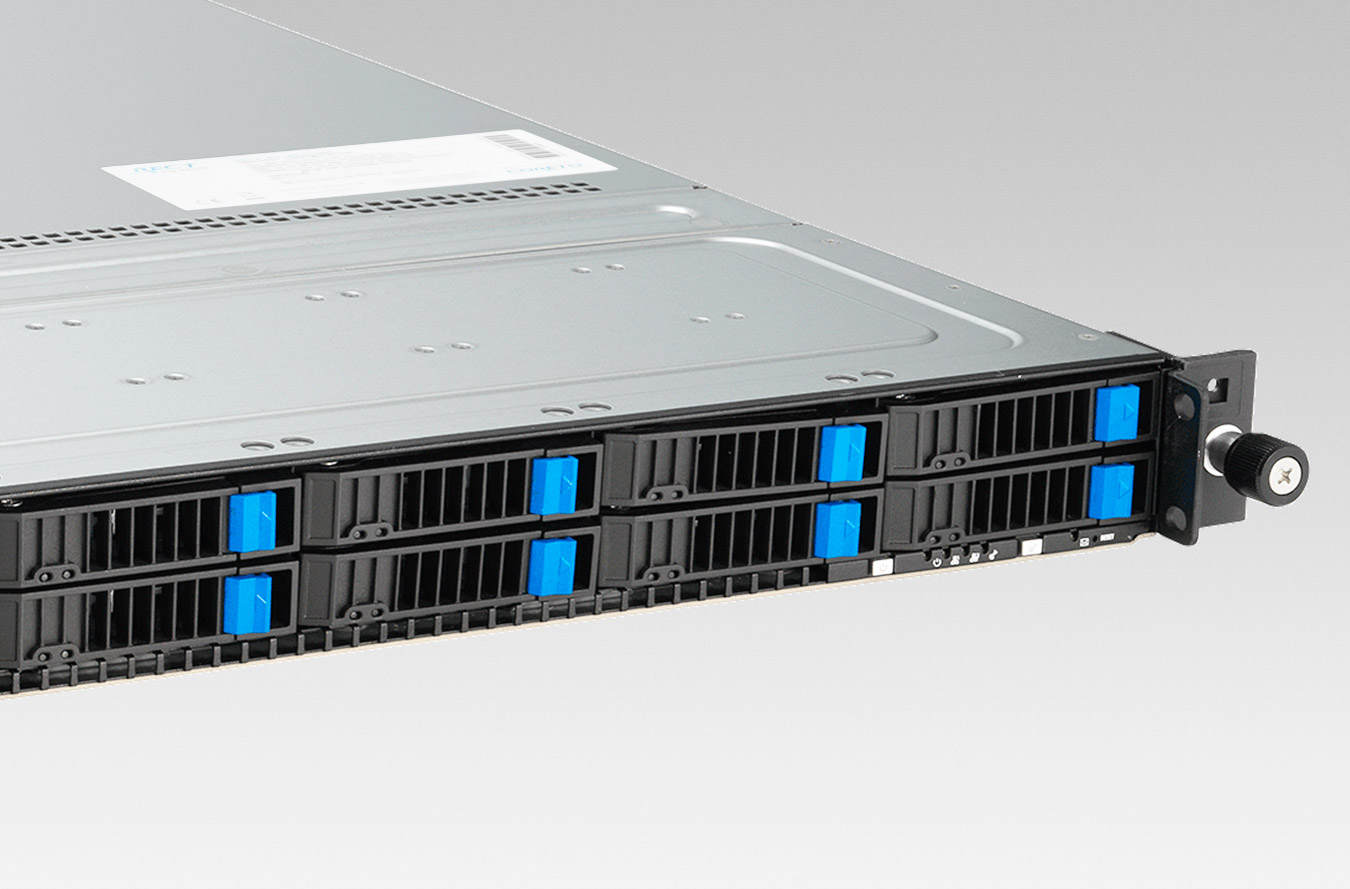

  • High-quality 19" rack server case with 12x 2.5" hot-swap trays

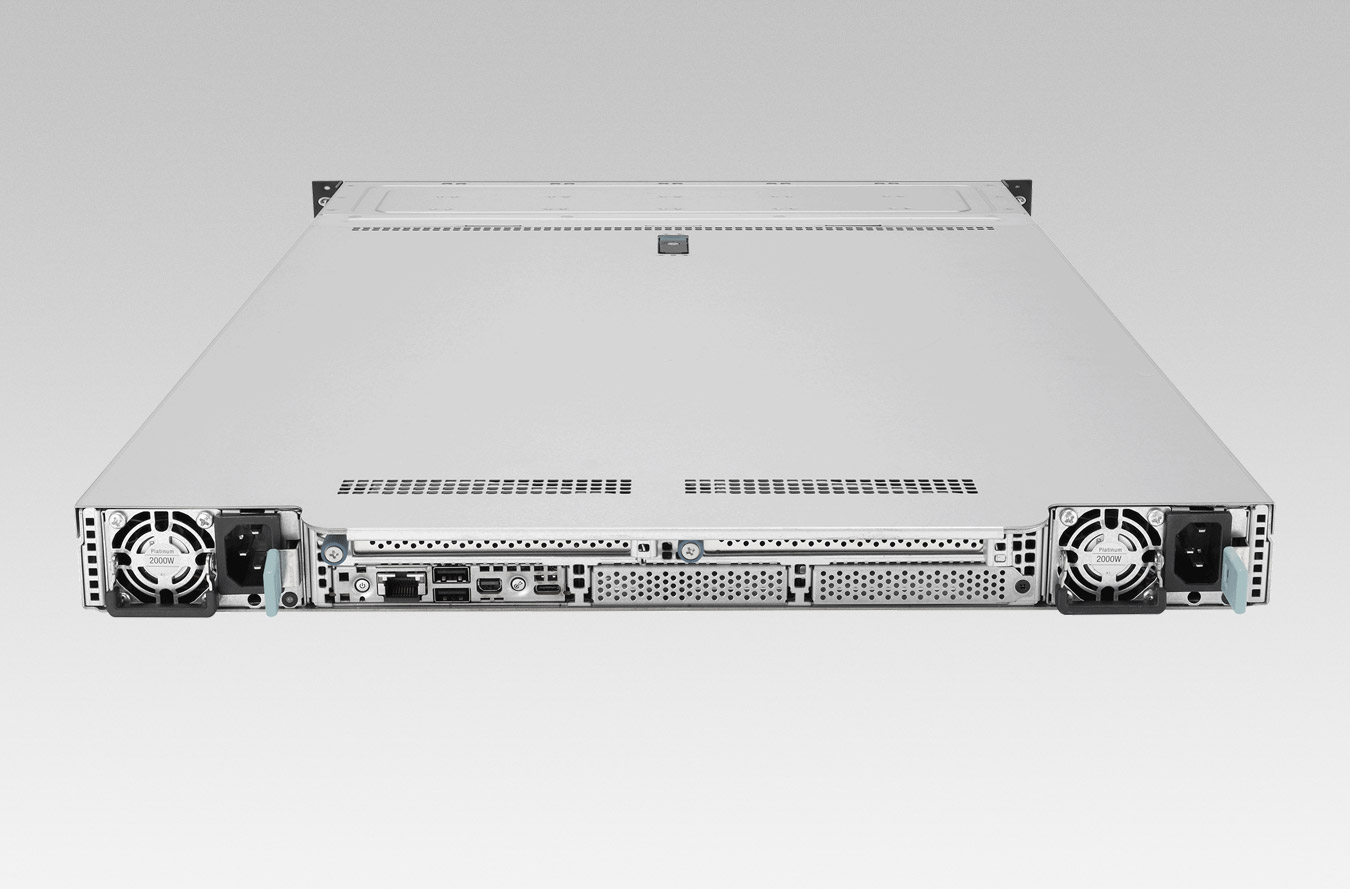

  • redundant power supply 80Plus Titanium
  • Server depth: 82 cm

Supported operating systems

  • Microsoft Windows Server
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • VMware, Proxmox, XCP-ng

1U Rack Server with brand-new Intel Xeon 6 CPUs up to 288 cores

  • equipped with the all new Intel® Xeon® 6 Processors (Granite Rapids & Sierra Forest)
  • based on the latest Intel Server System-on-Chop „Birch Stream“
  • featuring widespread Remote Management functions
  • two PCIe 5.0 x16 slots (FHHL) and two OCP 3.0 slots

KeyFacts

  • driven by two CPUs, each up to 88 PCIe Lanes, up to 144 Cores, up to 4.00 GHz (Turbo up to 4.30 GHz), up to 336 MB L3-Cache and DDR5-6400 ECC RAM over 8-channel
  • scalable memory up to 4 TB DDR5-6400 ECC Reg. RAM
  • up to 368 TB NVME storage
  • onboard two M.2 interfaces for NVMe SSDs (PCIe 5.0 x2)
  • Remote Management Features (ASMB12-iKVM)
  • High-quality 19" rack server case with 12x 2.5" hot-swap trays
  • redundant power supply 80Plus Titanium
  • Server depth: 82 cm

Supported operating systems

  • Microsoft Windows Server
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • VMware, Proxmox, XCP-ng
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Windows Server 2025
Loading...

Processor

Details
  • Intel Xeon 6500 series processors with P-cores
  • Intel Xeon 6700 series processors with P-cores
  • Intel Xeon 6700 series processors with E-cores
  • Need more?   show more options
    Too much?   show less options

DDR5 Memory

Details
  • Need more?   show more options
    Too much?   show less options

Mainboard


Trusted Platform Module

Remote Management Interface on Board

IPMI 2.0, KVM over LAN, Virtual Media over LAN, Remote Power on/off and Reset, Remote Hardware Monitoring, Embedded Web-Server


Graphics card

    Details



    Controller

    • Onboard controller
      Host-based solution with basic requirements - for price-optimized entry without RAID options

    Drives

    12 in hot-swap trays

      Details
      • Enterprise M.2 NVMe SSDs (PCIe 4.0)
        with optimized performance for read-intensive applications, low latency and IOPS consistency
      • PCIe 5.0 High-Performance M.2 NVMe SSDs
      • Standard M.2 NVMe SSDs (PCIe 4.0)
      Details
      • High performance data according to IOPS, lower TBW values. Optimized performance for read-intensive applications.
      • Optimized performance for read and write intensive applications
      • Need more?   show more options
        Too much?   show less options

      Intel VROC RAID

      Recommended for Microsoft operating systems.
      Intel Virtual RAID on CPU (Intel VROC) is an enterprise RAID solution specifically designed for NVMe SSDs that provides expected reliability, while unleashing the performance of NVMe SSDs.

      Details

      Network

      Details




      Details






      Details




      Details



      Details









      • Copper patch cable (RJ-45), Cat.6A, 500MHz, halogen free
        Patch cable in the highest quality for a professional cabling in Gigabit and 10 Gigabit range (up to 100m).
        Cable sheath halogen free, full copper core, S/FTP (PiMf) 4x2xAWG26/7, gold plated contacts.
        For use in data centers and server racks

      Case


      Mounting


      Power supply


      Power Cable









      Uninterruptible power supply (UPS)

      Protected from power interruptions?
      Choose from a wide variety  RECT Accessories - UPS

        Proxmox

        Proxmox VE (Virtual Environment) is a complete, open-source server management platform for enterprise virtualization. It tightly integrates the KVM hypervisor and Linux Containers (LXC), software-defined storage and networking functionality, on a single platform. With the integrated web-based user interface you can manage VMs and containers, high availability for clusters, or the integrated disaster recovery tools with ease.

        Proxmox VE Subscriptions

        A Proxmox VE Subscription is a service program that helps IT professionals and businesses to conveniently keep their Proxmox VE infrastructure up-to-date. Subscriptions provide access to the default and most stable package repository, the Proxmox Enterprise Repository, thus delivering reliable software updates and security enhancements, as well as enterprise-grade technical support.
        Proxmox VE subscriptions are charged per physical server and the number of CPU sockets it occupies.













          Microsoft Operating Systems

          language:

          Details
          • Microsoft Windows Server 2025





          • License Hints for Windows Server 2025/2022

            For correct licensing of the Standard Edition and Datacenter Edition with the chosen precessor equipment – - – a core license is required.
            (Show more details regarding virtualisation licensing)

          Additional Core Licenses for Windows Server 2025

          To license more cores than provided by the 16-core base license.

          Microsoft Server Applications

          Each license covered by Software Assurance (SA) entitles you to upgrade to the latest version. Each active Server with Software Assurance allowss a passive-failover instance of the Server Application and an improved license mobility.

          Details



          Operating System CALs

          • Standard CALs for Device and/or User
            In addition to the server licenses, you need licenses for all clients accessing the server (Client Access Licenses). These CALs may be licensed by users (User CALs) or devices (Device CALs). A User CAL is recommended when a user accesses the server with different devices. A Device CAL is favourable when one device is used by different users to access the server. All CALs are downward compatible with earlier releases of Microsoft Server.
          • Server 2025
          • Remote Desktop Services CALs
            Required for the provision and use of Remote Desktop Services based on the number of users or devices accessing the service.


          • Microsoft SQL Server CALs




          • Microsoft Exchange Server CALs


          Backup - Software

          Details




          RECT Smart Warranty .HDD

          The best choice for sensitive data! With the RECT "Smart Warranty .HDD" you yourself can decide how you want to dispose of a faulty enterprise hard drive because you can simply keep that hard drive while we will take the necessary replacement directly to you.
          Note: ... ►The capacity and not the number of the inserted hard drives is decisive. In case you need hard drives with different capacities within one configuration, the chosen option for "Smart Warranty .HDD" has to comply with the biggest hard drive in it. For all details regarding the transaction, please see the service conditions for this service. SSDs are excluded from the RECT "Smart Warranty .HDD" ◄

          • 36 months runtime for all 3.5" hard drives of the server
          • 60 months runtime for all 3.5" hard drives of the server

          Service & Support Level

          Location:

          Details
          • Bring-In Warranty
            Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
            Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
          • Pick-Up
            Technical support: by phone and e-mail, effective support with initial operation, installation and configuration, support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
            Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
          • On-Site (3BD)
            Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration, support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
            Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
          • On-Site (NBD)
            Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration, support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
            Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

          Alternativen:

          Dual Intel Xeon

          All-new Intel Xeon 6700 & 6500 series processors in 2U Rack Server

          Server - Rack Server - 2U - RECT™ RS-8694R12 - All-new Intel Xeon 6700 & 6500 series processors in 2U Rack Server

          RECT™ RS-8694R12

          brand-new dual socket 2U RECT™ Rack Server - comprehensively scalable:
          • NEW: equipped with two Intel Xeon 6 procesors for up to 288 cores
          • up to 2 TB DDR5-6400 ECC Reg. RAM
          • 12 hot-swap trays for up to 268 TB storage capacity, including four trays for 2.5" NVMe SSDs
          • onboard: 2x 10Gbit LAN ports
          • six PCIe 5.0 expansion slots
          • Proxmox VE Ready

          Dual EPYC 9005 - pure Power!

          1U Rack Server with two AMD EPYC 9005 CPUs up to 320 cores

          Server - Rack Server - 1U - RECT™ RS-8540N12 - 1U Rack Server with two AMD EPYC 9005 CPUs up to 320 cores

          RECT™ RS-8540N12

          Powerful dual socket 1U Rack Server with two AMD EPYC™ 9005 processors:
          • NEUW equipped with two AMD
            EPYC 9845 CPUs for up to 320 Cores
          • up to 3 TB DDR5-6400 ECC RAM
          • up to 368 TB storage with 2.5" NVMe/SATA SSDs in 12 hot-swap trays
          • onboard 2x M.2 interfaces
          • two PCIe 5.0 x16 slots (FHHL) and two OCP 3.0 slots
          • Proxmox VE ready

          Genoa. Immersive Power

          1U Rack Server with AMD EPYC 9004 CPUs up to 128 Cores

          Server - Rack Server - 1U - RECT™ RS-8539N4 - 1U Rack Server with AMD EPYC 9004 CPUs up to 128 Cores

          RECT™ RS-8539N4

          now with AMD EPYC™ 9004 processors - up to 128 cores and 256 Threads:
          • Single socket up to AMD EPYC 9754 (128 Cores, 2.25 GHz, 256 MB Cache)
          • up to 3 TB DDR5-4800 ECC RAM
          • up to 61,4 TB storage with NVMe SSDsor up to 96 TB storage with HDDs
          • onboard two M.2 interfaces (PCIe 5.0 x4)
          • three PCIe 5.0 expansion slots and one OCP 3.0 slot
          • Proxmox VE ready

          EPYC™ 9005 - AMD Power!

          1U Rack Server with brand-new AMD EPYC 9005 CPUs up to 160 cores

          Server - Rack Server - 1U - RECT™ RS-8539N12 - 1U Rack Server with brand-new AMD EPYC 9005 CPUs up to 160 cores

          RECT™ RS-8539N12

          now with latest AMD EPYC™ 9005 processors - up to 160 cores and 320 Threads:
          • NEW: Single socket up to AMD EPYC 9845 (160 Cores, 320 MB Cache)
          • up to 3 TB DDR5-5600 ECC RAM
          • up to 368 TB storage with SSDs (NVMe/SATA/SAS*) in 12 hot-swap trays
          • onboard 2x M.2 interfaces (PCIe 5.0 x4)
          • three PCIe 5.0 expansion slots and one OCP 3.0 slot
          • Proxmox VE ready

          RECT™ RS-8594N12

          €
          Main configuration
          6,399.00
          Configuration:
          Complete Configuration
          Current price


          Main configuration: 6,399.00 €
          Complete Configuration: 0,00 €
          Current price: 0,00 €   (Plus VAT)
          RECT-ID: 2691
          Last update: 08.01.2026
