RECT™ RS-8589N10

RECT-ID:2633

RECT™ RS-8589N10

RECT-ID: 2633
Ready for shipment in about 3-5 workdays
Express-shipping: start request...

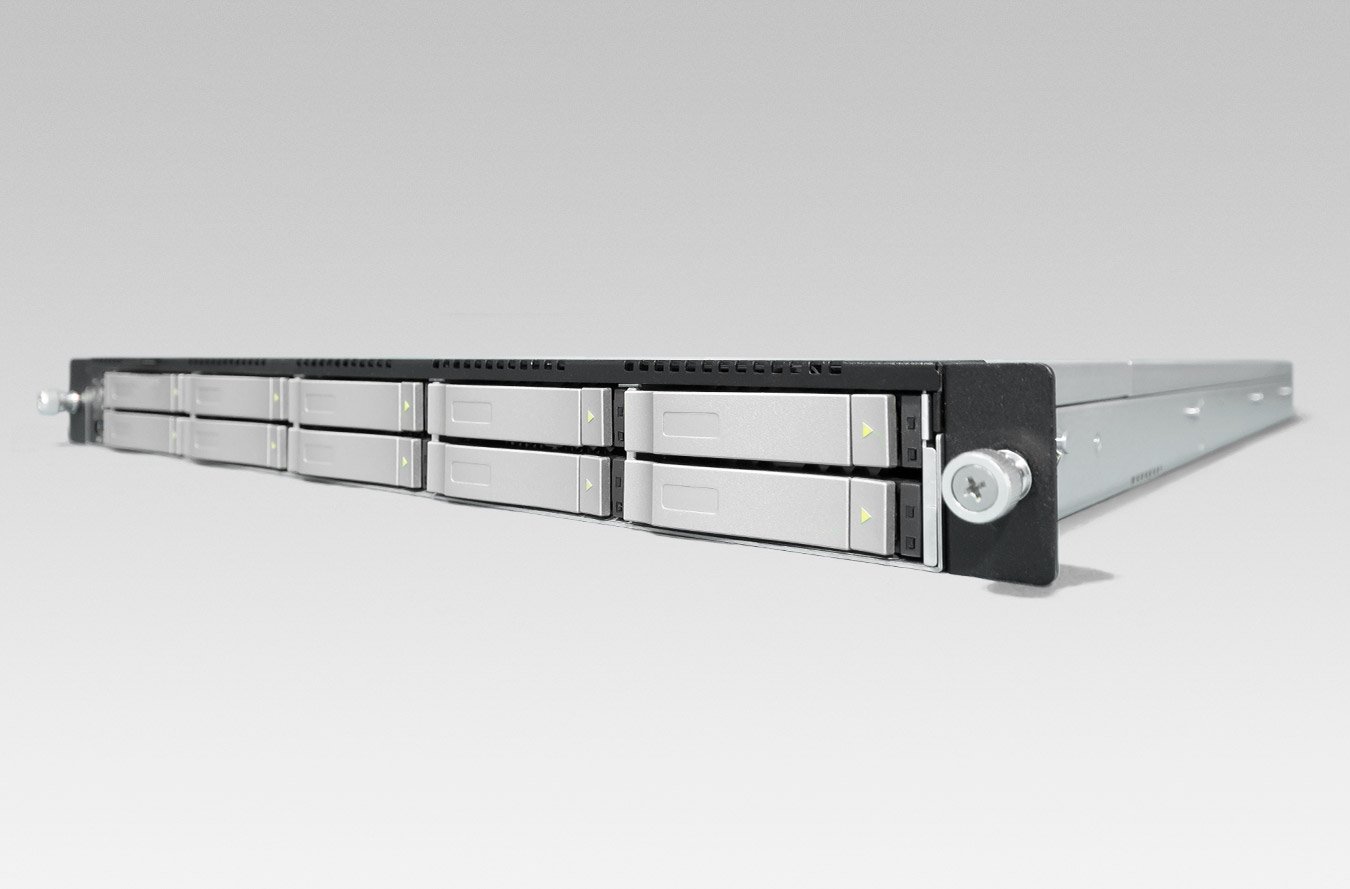

Xeon Scalable of the 3rd gen. in 1U Rack Server with up to 10 NVMe SSDs

  • A new dimension of scalability: Powerful RECT™ Server based on Intel‘s comprehensively scalable platform (Whitley)
  • equipped with Intel® Xeon® Scalable Processors of the 3rd Generation (Ice Lake SP)
  • based on Intel Server chipset „Whitley“ (Intel® C621A chipset with 2x 10Gbit LAN ports onboard)
  • featuring widespread Remote Management functions

KeyFacts

  • driven by one CPU with 64 PCIe Lanes, scalable up to 32 Cores and 64 Threads, up to 3.60 GHz (Turbo up to 4.70 GHz), up to 48 MB L3-Cache and DDR4-3200 over 8-channel
  • scalable memory up to 1 TB DDR4-3200 ECC RAM
  • scalable traditional storage with 2.5" NVMe SSDs for up to 153 TB capacity
  • RAID Levels 0, 1, 5, and 10 with optional Intel VROC RAID Module
  • High-quality 19" 1U Rack Server case with 10 hot-swap trays (2.5")
  • Single or redundant power supply

Supported operating systems

  • Microsoft Windows Server
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • VMware, Proxmox

Xeon Scalable of the 3rd gen. in 1U Rack Server with up to 10 NVMe SSDs

  • A new dimension of scalability: Powerful RECT™ Server based on Intel‘s comprehensively scalable platform (Whitley)
  • equipped with Intel® Xeon® Scalable Processors of the 3rd Generation (Ice Lake SP)
  • based on Intel Server chipset „Whitley“ (Intel® C621A chipset with 2x 10Gbit LAN ports onboard)
  • featuring widespread Remote Management functions

KeyFacts

  • driven by one CPU with 64 PCIe Lanes, scalable up to 32 Cores and 64 Threads, up to 3.60 GHz (Turbo up to 4.70 GHz), up to 48 MB L3-Cache and DDR4-3200 over 8-channel
  • scalable memory up to 1 TB DDR4-3200 ECC RAM
  • scalable traditional storage with 2.5" NVMe SSDs for up to 153 TB capacity
  • RAID Levels 0, 1, 5, and 10 with optional Intel VROC RAID Module
  • High-quality 19" 1U Rack Server case with 10 hot-swap trays (2.5")
  • Single or redundant power supply

Supported operating systems

  • Microsoft Windows Server
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • VMware, Proxmox
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Windows Server 2022
Loading...

Processor

  • Intel® Xeon® Scalable Silver Processors
  • Intel® Xeon® Scalable Gold Processors

Memory

  • Need more?   show more options
    Too much?   show less options

Mainboard


Trusted Platform Module


Remote Management Interface on Board

IPMI 2.0, KVM over LAN, Virtual Media over LAN, Remote Power on/off and Reset, Remote Hardware Monitoring, Embedded Web-Server


Drives

ten NVMe SSDs in hot-swap trays, two M.2 NVMe SSDs onboard

    • High performance data according to IOPS, lower TBW values. Optimized performance for read-intensive applications.
    • Optimized performance for read and write intensive applications
    • Need more?   show more options
      Too much?   show less options
    • Enterprise M.2 NVMe SSDs (PCIe 4.0)
      with optimized performance for read-intensive applications (1DWD)
    • Standard M.2 NVMe SSDs (PCIe 4.0)
    • Need more?   show more options
      Too much?   show less options
    • Disk on Module
      SATA DOMs (Disk On Module) are small flash modules that can be connected directly to the SATA port of the mainboard. They are perfectly suited for use as boot drives or OS installation devices.

    Controller

    • Onboard controller
      Host-based NVMe solution with basic requirements - with RAID options via VROC key (optional)

    Intel VROC RAID

    Intel Virtual RAID on CPU (Intel VROC) is an enterprise RAID solution specifically designed for NVMe SSDs that provides expected reliability, while unleashing the performance of NVMe SSDs.

    RAID configuration



    Network





















    • Copper patch cable (RJ-45), Cat.6A, 500MHz, halogen free
      Patch cable in the highest quality for a professional cabling in Gigabit and 10 Gigabit range (up to 100m).
      Cable sheath halogen free, full copper core, S/FTP (PiMf) 4x2xAWG26/7, gold plated contacts.
      For use in data centers and server racks

    Mounting


    Front Bezel

    Power supply



    Power Cable









    Uninterruptible power supply (UPS)

    Protected from power interruptions?
    Choose from a wide variety  RECT Accessories - UPS

      Operating System

      The selected operating system is factory-installed and includes 30 days installation support, by phone or email.
      Further MS editions plus MS-Open licenses can be found under RECT Accessories. Further language editions on demand.

      language:


      • Microsoft Windows Server 2022






      • License Hints for Windows Server 2019/2022

        For correct licensing of the Standard Edition and Datacenter Edition with the chosen precessor equipment – - – a core license is required.
      • Need more?   show more options
        Too much?   show less options

      Additional Core Licenses for Windows Server 2022

      To license more cores than provided by the 16-core or 24-core base license.

      Microsoft Server Applications

      Each license covered by Software Assurance (SA) entitles you to upgrade to the latest version. Each active Server with Software Assurance allowss a passive-failover instance of the Server Application and an improved license mobility.





      Operating System CALs

      • Standard CALs for Device and/or User
        In addition to the server licenses, you need licenses for all clients accessing the server (Client Access Licenses). These CALs may be licensed by users (User CALs) or devices (Device CALs). A User CAL is recommended when a user accesses the server with different devices. A Device CAL is favourable when one device is used by different users to access the server. All CALs are downward compatible with earlier releases of Microsoft Server.
      • Remote Desktop Services CALs
        Required for the provision and use of Remote Desktop Services based on the number of users or devices accessing the service.


      • Microsoft SQL Server CALs




      • Microsoft Exchange Server CALs




      Backup - Software





      RECT Smart Warranty .HDD

      The best choice for sensitive data! With the RECT "Smart Warranty .HDD" you yourself can decide how you want to dispose of a faulty enterprise hard drive because you can simply keep that hard drive while we will take the necessary replacement directly to you.
      Note: ...The capacity and not the number of the inserted hard drives is decisive. In case you need hard drives with different capacities within one configuration, the chosen option for "Smart Warranty .HDD" has to comply with the biggest hard drive in it. For all details regarding the transaction, please see the service conditions for this service. SSDs are excluded from the RECT "Smart Warranty .HDD"

      • 36 months runtime for all 3.5" hard drives of the server
      • 60 months runtime for all 3.5" hard drives of the server

      Service & Support Level

      Location:

      • Bring-In Warranty
        Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
        Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
      • Pick-Up Warranty
        Technical support: by phone and e-mail, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
      • On-Site (3BD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
      • On-Site (NBD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

      Alternativen:

      RECT™ RS-8589N10

      Main configuration
      2,663.00
      Configuration:
      Complete Configuration
      Current price


      Main configuration: 2,663.00 €
      Complete Configuration: 0,00
      Current price: 0,00   (Plus VAT)
      RECT-ID: 2633
      Last update: 02.11.2024
