RECT™ TS-5437R8

RECT-ID:1755

RECT™ TS-5437R8

RECT-ID: 1755
Ready for shipment in about 3-5 workdays
Express-shipping: start request...

Tower Server with AMD EPYC Milan CPUs up to 64 Cores

KeyFacts

  • AMD EPYC™ processors featuring AMD "Zen 3" micro-architecture for incredible compute performance
  • driven by one AMD EPYC™ Milan CPU with 8, 16, 24, 28, 32, 48, 56 or 64 Cores and with up to 3.70 GHz, 256 MB L3 Cache, 128 PCIe Lanes and DDR4-3200 over 8-channel
  • 12 Gbit SAS-Backplane and RAID-Controller for maximum Performance
  • Ultra-fast storage with the latest PCIe 4.0 NVMe SSDs
  • Server-Mainboard with AMD System-on-Chip and seven PCIe 4.0 expansion slots
  • up to 1 TB DDR4-3200 RAM ECC Reg.
  • up to 192 TB SAS/S-ATA HDD storage
  • RAID Levels: 0, 1, 5, 6, 10, 50 and 60

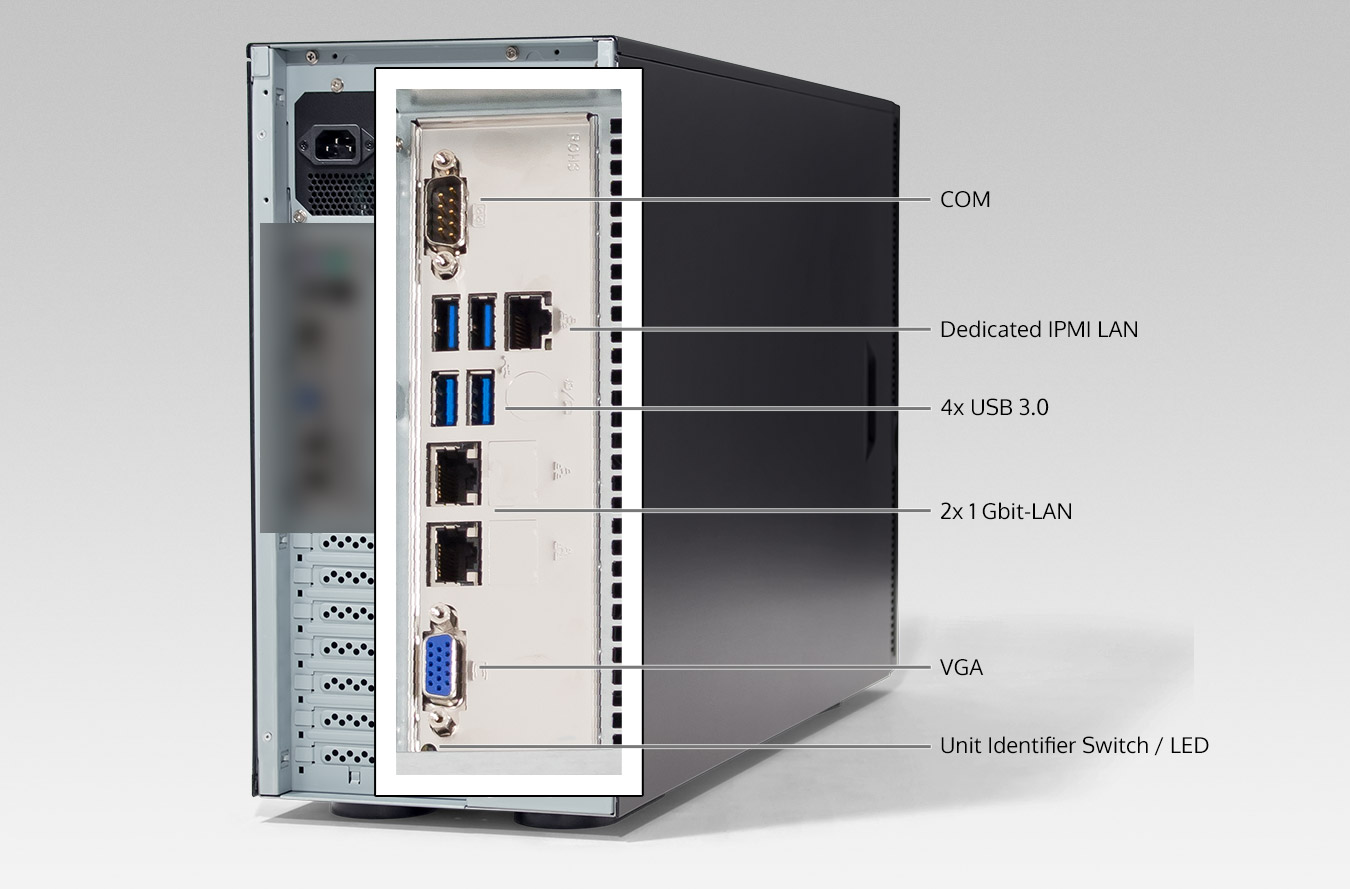

  • Remote Management Features (IPMI 2.0)

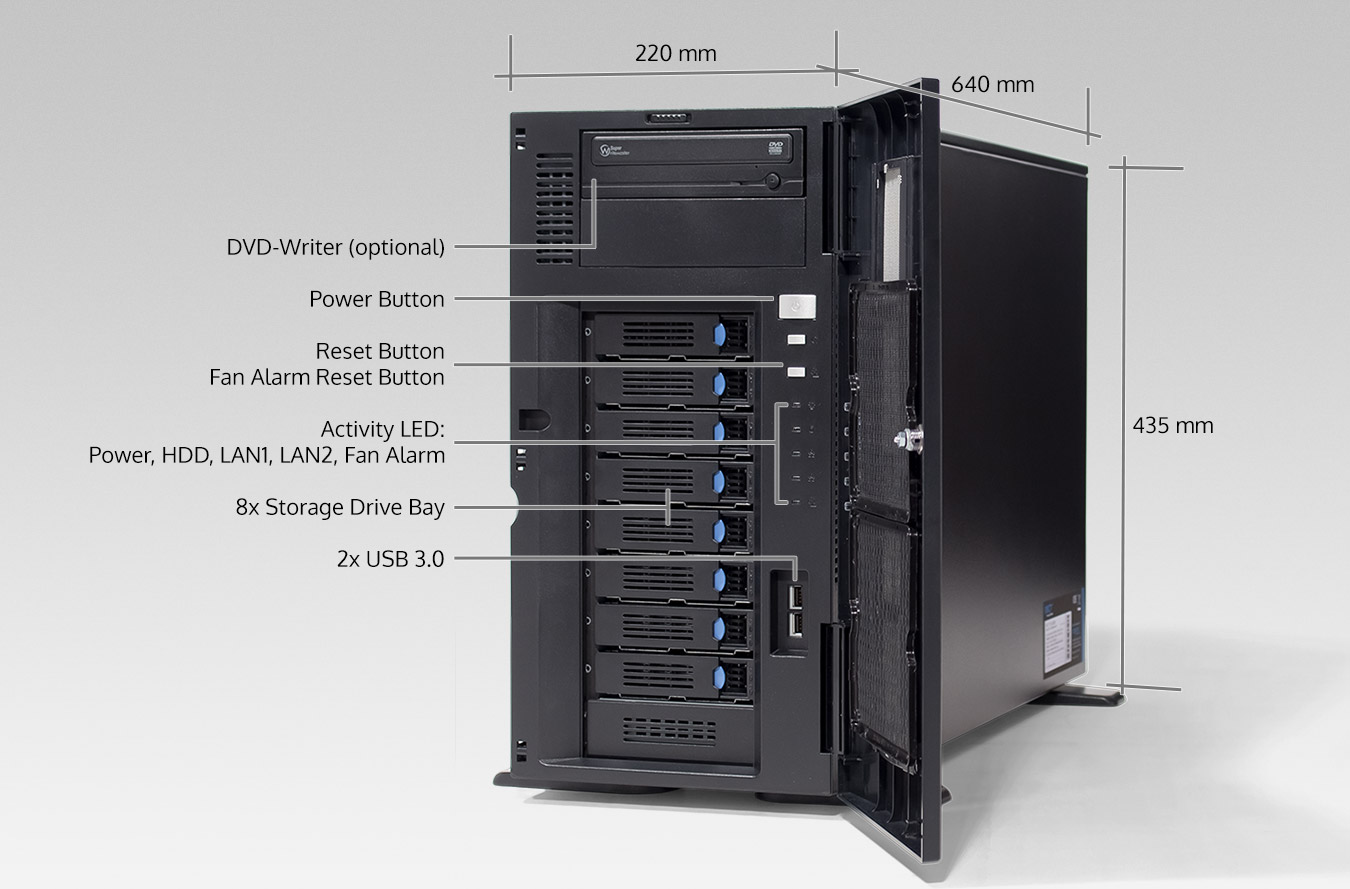

  • High-quality tower server case with 8 hot-swap trays
  • Single or redundant power supply

Supported operating systems

  • Microsoft Windows Server
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • VMware, Proxmox, XCP-ng

Tower Server with AMD EPYC Milan CPUs up to 64 Cores

KeyFacts

  • AMD EPYC™ processors featuring AMD "Zen 3" micro-architecture for incredible compute performance
  • driven by one AMD EPYC™ Milan CPU with 8, 16, 24, 28, 32, 48, 56 or 64 Cores and with up to 3.70 GHz, 256 MB L3 Cache, 128 PCIe Lanes and DDR4-3200 over 8-channel
  • 12 Gbit SAS-Backplane and RAID-Controller for maximum Performance
  • Ultra-fast storage with the latest PCIe 4.0 NVMe SSDs
  • Server-Mainboard with AMD System-on-Chip and seven PCIe 4.0 expansion slots
  • up to 1 TB DDR4-3200 RAM ECC Reg.
  • up to 192 TB SAS/S-ATA HDD storage
  • RAID Levels: 0, 1, 5, 6, 10, 50 and 60
  • Remote Management Features (IPMI 2.0)
  • High-quality tower server case with 8 hot-swap trays
  • Single or redundant power supply

Supported operating systems

  • Microsoft Windows Server
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • VMware, Proxmox, XCP-ng
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Windows Server 2022
Loading...

Processor

  • Epyc 7002 Series (Rome)
  • Epyc 7003 Series (Milan)
  • Need more?   show more options
    Too much?   show less options

Memory

  • Need more?   show more options
    Too much?   show less options

Mainboard




Trusted Platform Module

Remote Management Interface on Board

IPMI 2.0, KVM over LAN, Virtual Media over LAN, Remote Power on/off and Reset, Remote Hardware Monitoring, Embedded Web-Server


Graphics card











    Drives

    8 in hot-swap trays, 2 internal (2.5")

      • Enterprise M.2 NVMe SSDs (PCIe 4.0)
        with optimized performance for read-intensive applications (1DWD)
      • Standard M.2 NVMe SSDs (PCIe 4.0)
      • Need more?   show more options
        Too much?   show less options
      • Need more?   show more options
        Too much?   show less options
      • Need more?   show more options
        Too much?   show less options
      • Enterprise SSDs with optimized performance for read-intensive applications
      • Enterprise SSDs with optimized performance for read and write intensive applications (Mixed-Use)
      • Need more?   show more options
        Too much?   show less options
      • Enterprise SSDs with optimized performance for read-intensive applications
        (ERP, CRM, Data Warehouse, File Server, Database Analytics, Video Streaming)
      • Enterprise SSDs with optimized performance for read and write intensive applications (Mixed-Use)
        (Databases, OLTP, Financial Transactions, E-Commerce, E-Mail / Messaging, Virtual Environments)
      • Need more?   show more options
        Too much?   show less options

      2.5" SSDs, mounted internal, connected with the mainboard

      • SATA SSD
      • High performance data according to IOPS, lower TBW values. Optimized performance for read-intensive applications.
      • Excellent performance combined with very high endurance. Optimized performance for read and write intensive applications
      • U.2 NVMe SSD
      • High performance data according to IOPS, lower TBW values. Optimized performance for read-intensive applications.
      • Optimized performance for read and write intensive applications
      • Need more?   show more options
        Too much?   show less options
      • Disk on Module
        SATA DOMs (Disk On Module) are small flash modules that can be connected directly to the SATA port of the mainboard. They are perfectly suited for use as boot drives or OS installation devices.

      Controller

      • Onboard controller
        Host-based solution with basic requirements - for price-optimized entry without RAID options

      • Onboard SAS-Controller
        Host-based SAS-Controller with basic requirements - for price-optimized entry with RAID options 0, 1 and 10

      • RAID-Controller
        Ideal for 12 Gbps performance-hungry systems demanding high I/O transaction and high bandwidth processing without compromising maximum data protection.





      • Need more?   show more options
        Too much?   show less options

      Controller Cache Protection

      Short-term data storage to protect data in RAID-Cache in case of power outage.

      RAID configuration



      Network




















      • Copper patch cable (RJ-45), Cat.6A, 500MHz, halogen free
        Patch cable in the highest quality for a professional cabling in Gigabit and 10 Gigabit range (up to 100m).
        Cable sheath halogen free, full copper core, S/FTP (PiMf) 4x2xAWG26/7, gold plated contacts.
        For use in data centers and server racks

      CPU Cooling



      Optical disc drive

      Power supply



      Power Cable









      Uninterruptible power supply (UPS)

      Protected from power interruptions?
      Choose from a wide variety  RECT Accessories - UPS

        Hot-Swap-Kit for SSDs (front)

        The Hot-Swap-Kit is perfect for use with system SSDs. It is connected to the S-ATA controller of the mainboard.


        Additional SSDs

        The additional SATA SSDs are mounted inside the hot-swap kit

        • High performance data according to IOPS, lower TBW values. Optimized performance for read-intensive applications.
        • Excellent performance combined with very high endurance. Optimized performance for read and write intensive applications

        Operating System

        The selected operating system is factory-installed and includes 30 days installation support, by phone or email.
        Further MS editions plus MS-Open licenses can be found under RECT Accessories. Further language editions on demand.

        language:


        • Microsoft Windows Server 2022




        • License Hints for Windows Server 2019/2022

          For correct licensing of the Standard Edition and Datacenter Edition with the chosen precessor equipment – - – a core license is required.
        • Need more?   show more options
          Too much?   show less options

        Additional Core Licenses for Windows Server 2022

        To license more cores than provided by the 16-core or 24-core base license.

        Microsoft Server Applications

        Each license covered by Software Assurance (SA) entitles you to upgrade to the latest version. Each active Server with Software Assurance allowss a passive-failover instance of the Server Application and an improved license mobility.





        Operating System CALs

        • Standard CALs for Device and/or User
          In addition to the server licenses, you need licenses for all clients accessing the server (Client Access Licenses). These CALs may be licensed by users (User CALs) or devices (Device CALs). A User CAL is recommended when a user accesses the server with different devices. A Device CAL is favourable when one device is used by different users to access the server. All CALs are downward compatible with earlier releases of Microsoft Server.
        • Remote Desktop Services CALs
          Required for the provision and use of Remote Desktop Services based on the number of users or devices accessing the service.


        • Microsoft SQL Server CALs




        • Microsoft Exchange Server CALs




        Backup - Software





        Backup drives

        Tandberg RDX QuikStor combines the portability and reliability of tape-based backup with the speed and simplicity of a hard disk drive. RDX drives are tough, and media is shockproof and rugged enough to last more than 10 years. Tandberg RDX QuikStor offers reliable and convenient storage for backup, archive, data interchange and disaster recovery. RDX QuikStor provides a fixed disk mode and allows a seamless integration into windows-backup.


        Backup Cartridges

        The HDD-based RDX media is ideal for backup, restore and long term archiving tasks. RDX media offers a rugged design for maximum data protection with 10 years archival life, and an unlimited compatibility of drive- and media-generations which are the best prerequisite for long term archiving of your business data. It is an affordable solution for SOHOs and smaller SMBs.

        Tape Streamer (LTO)

        Streamers are generally special orders and therefore cannot be refunded within our money-back guarantee for new customers. Please ask our sales consultants for details.



        Streamer Cartridges

        Streamer Cartridges WORM

        LTO Ultrium WORM (Write Once, Read Many) media cartridges are available to meet today’s stringent regulatory and compliance requirements. Combined with native AES 256-bit encryption, WORM cartridges physically prevent data from being overwritten or tampered with, providing a reliable, accurate and scalable data integrity solution.

        Keyboard




        • Need more?   show more options
          Too much?   show less options

        Mouse


        Monitor


        RECT Smart Warranty .HDD

        The best choice for sensitive data! With the RECT "Smart Warranty .HDD" you yourself can decide how you want to dispose of a faulty enterprise hard drive because you can simply keep that hard drive while we will take the necessary replacement directly to you.
        Note: ...The capacity and not the number of the inserted hard drives is decisive. In case you need hard drives with different capacities within one configuration, the chosen option for "Smart Warranty .HDD" has to comply with the biggest hard drive in it. For all details regarding the transaction, please see the service conditions for this service. SSDs are excluded from the RECT "Smart Warranty .HDD"

        • 36 months runtime for all 3.5" hard drives of the server
        • 60 months runtime for all 3.5" hard drives of the server

        Service & Support Level

        Location:

        • Bring-In Warranty
          Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
          Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
        • Pick-Up Warranty
          Technical support: by phone and e-mail, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
          Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
        • On-Site (3BD) Warranty
          Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
          Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
        • On-Site (NBD) Warranty
          Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
          Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

        Alternativen:

        RECT™ TS-5437R8

        Main configuration
        1,994.00
        Configuration:
        Complete Configuration
        Current price


        Main configuration: 1,994.00 €
        Complete Configuration: 0,00
        Current price: 0,00   (Plus VAT)
        RECT-ID: 1755
        Last update: 13.10.2024
