RECT™ ST-36xxR24-N

RECT-ID:2248

RECT™ ST-36xxR24-N

RECT-ID: 2248
Ready for shipment in about 3-5 workdays
Express-shipping: start request...

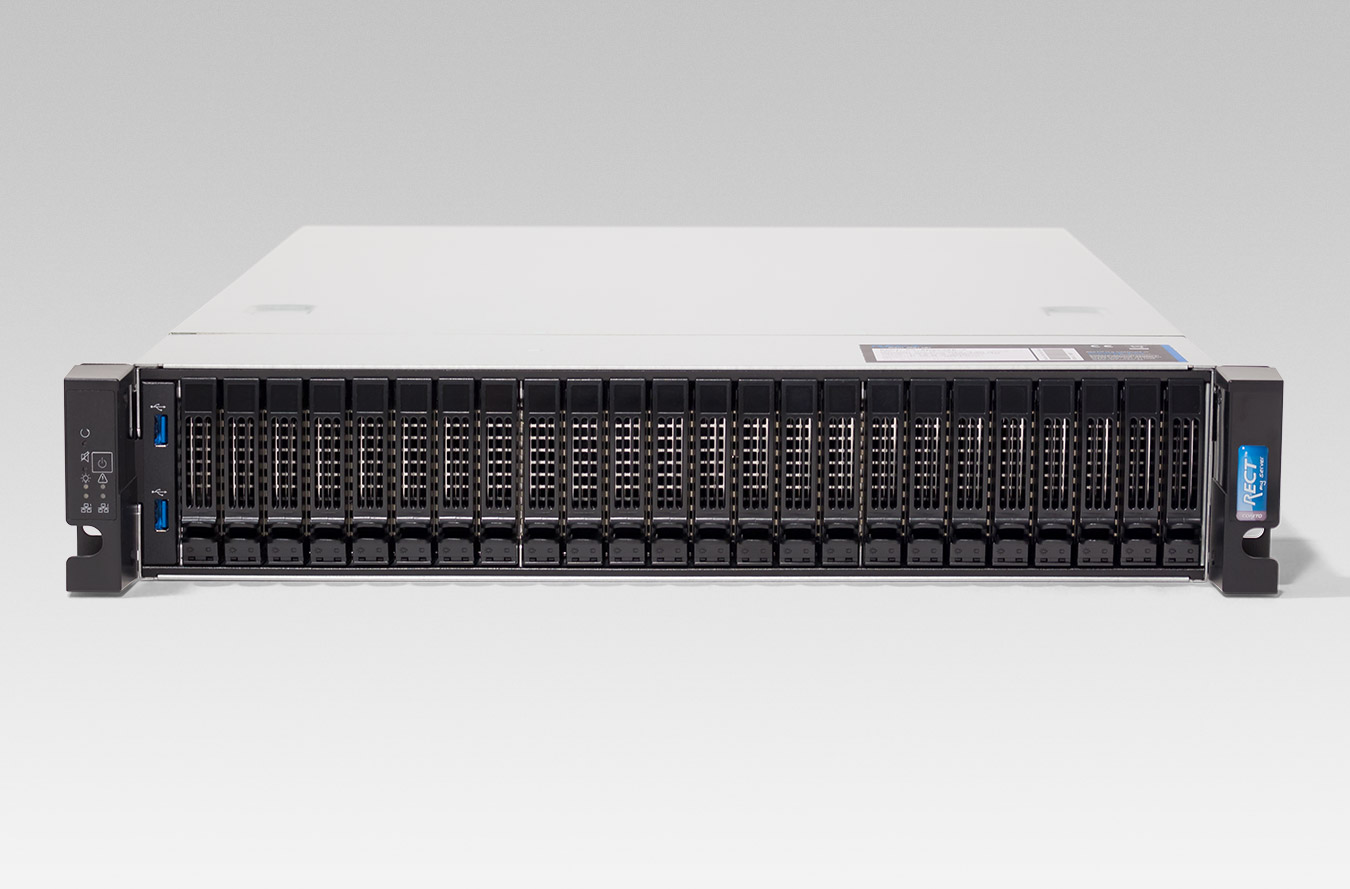

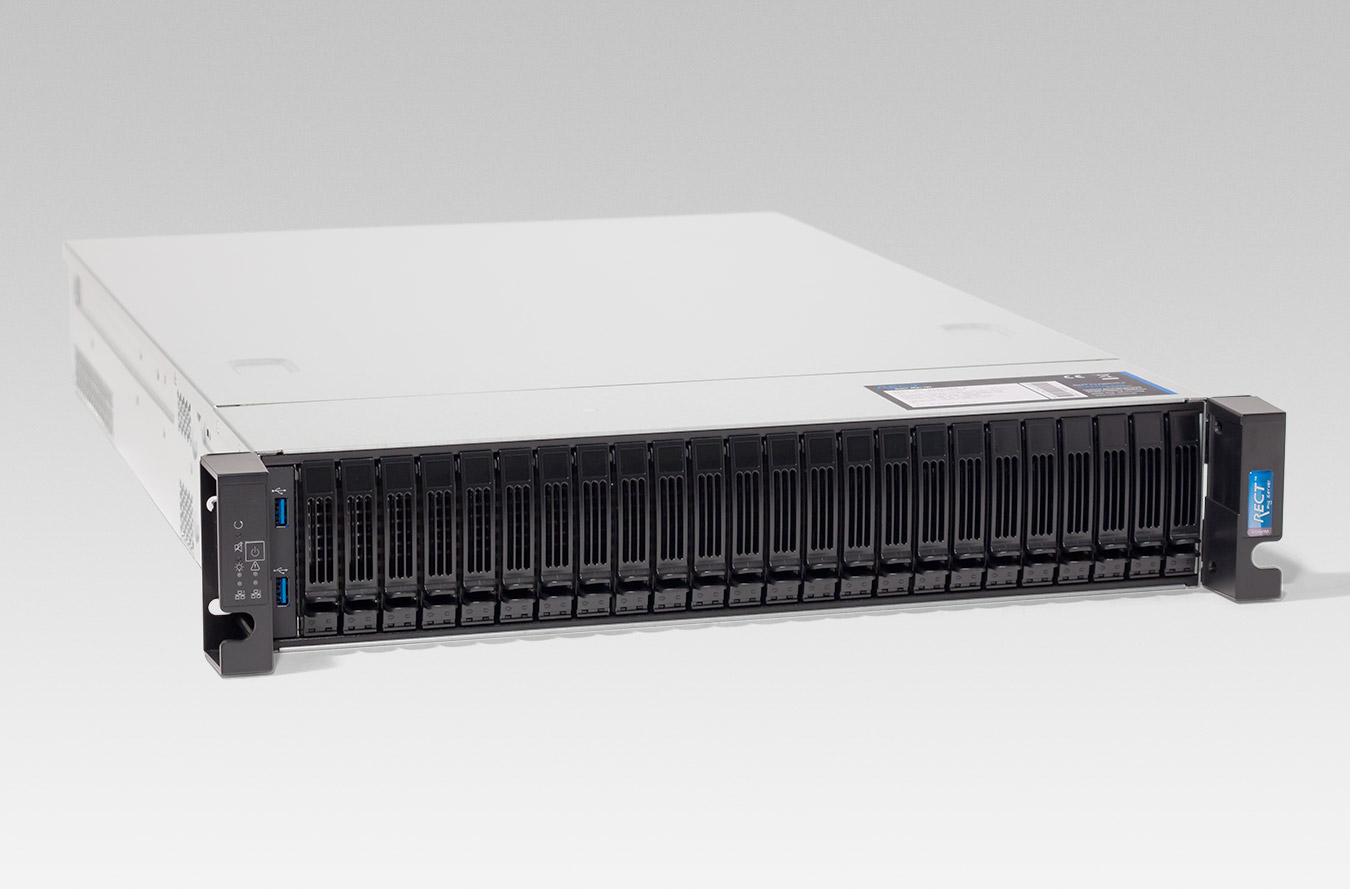

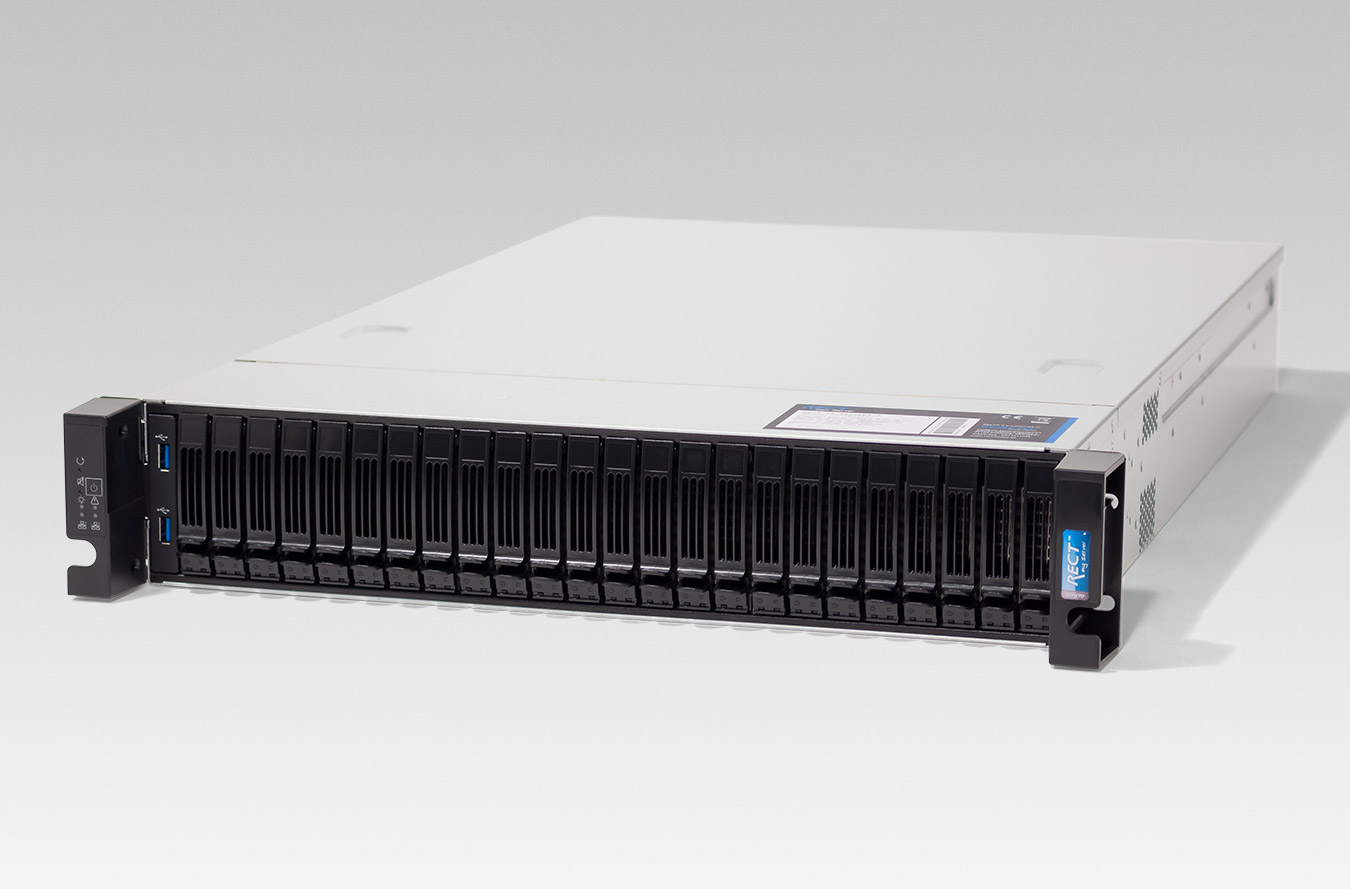

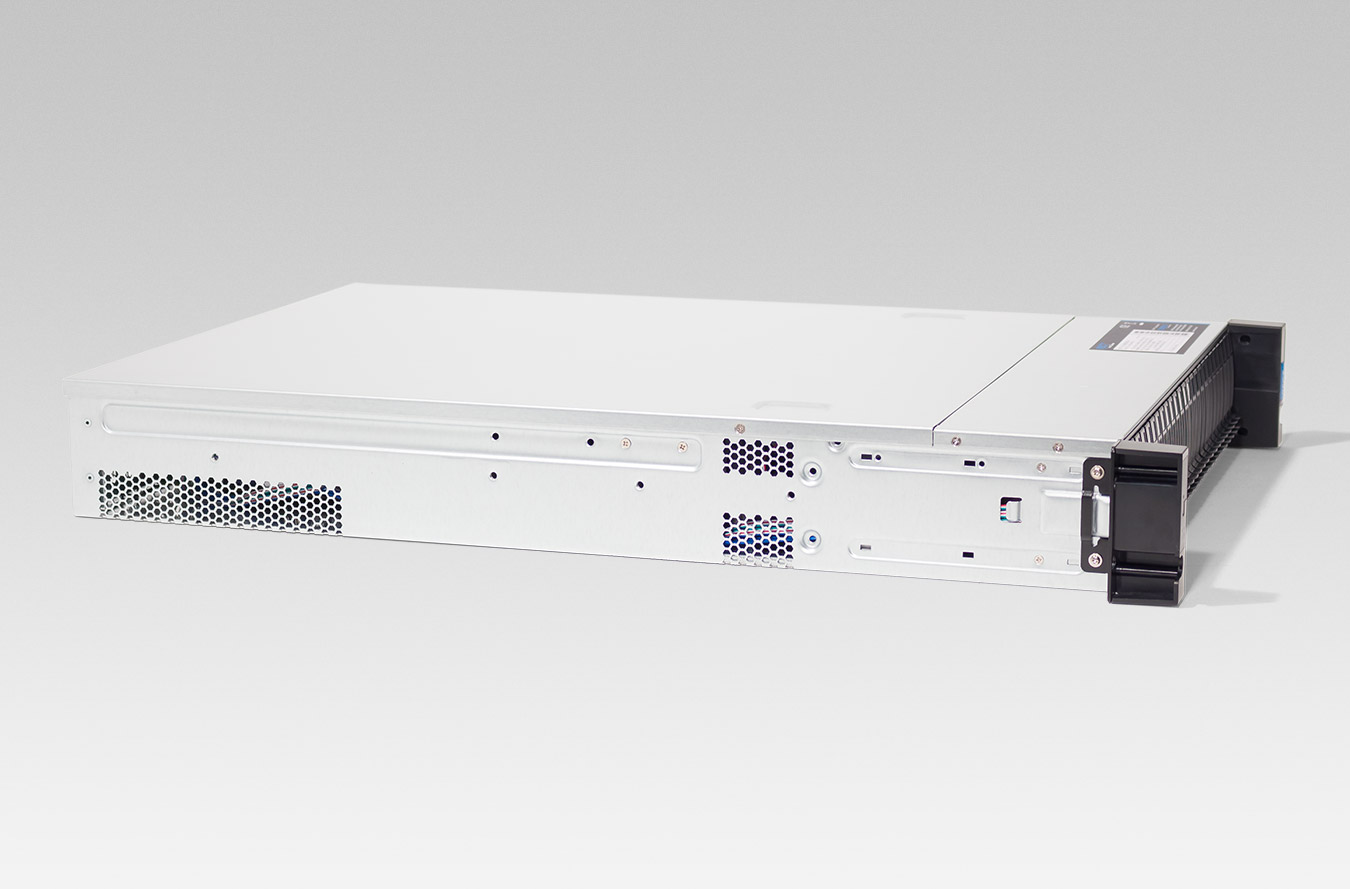

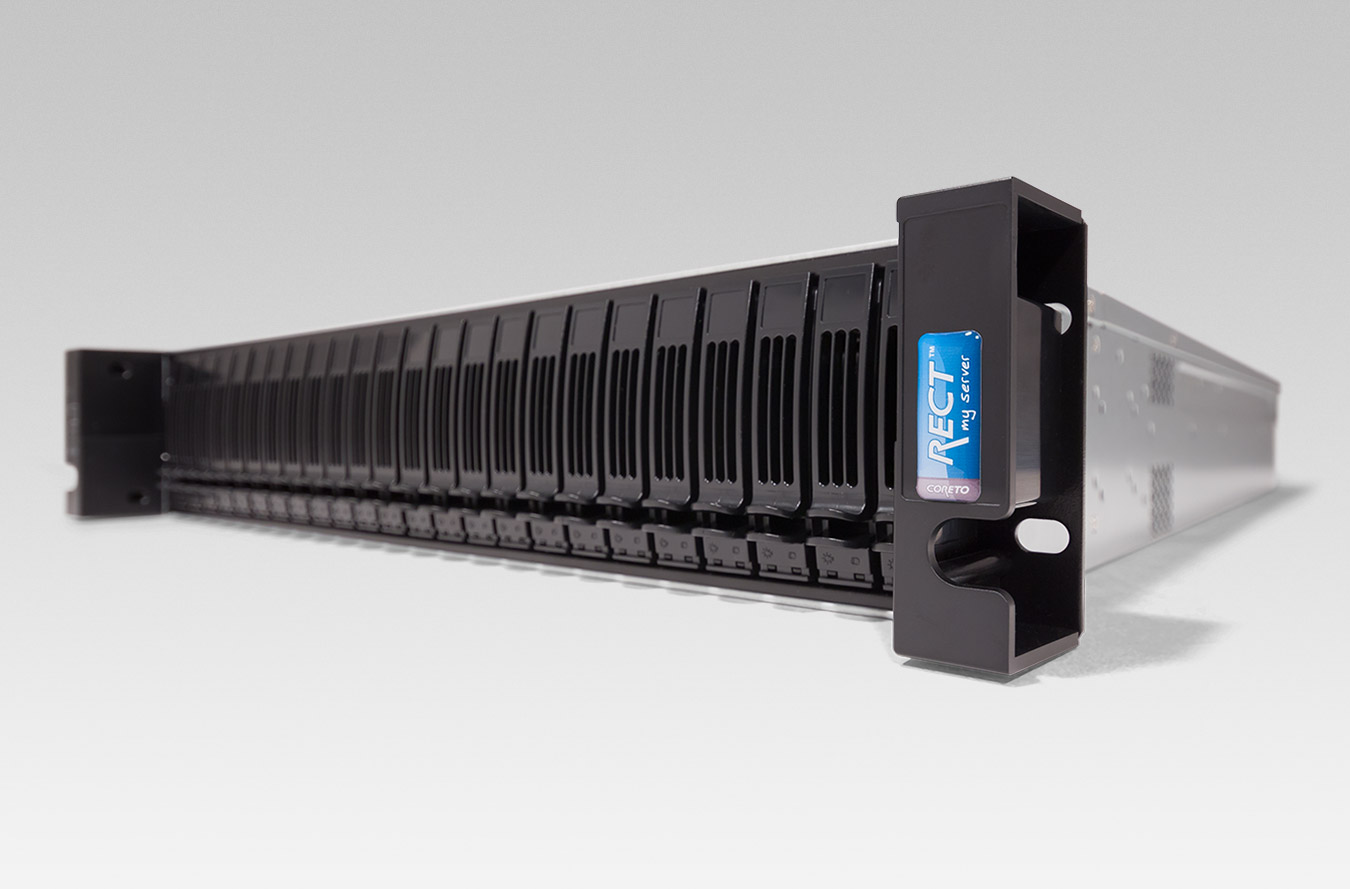

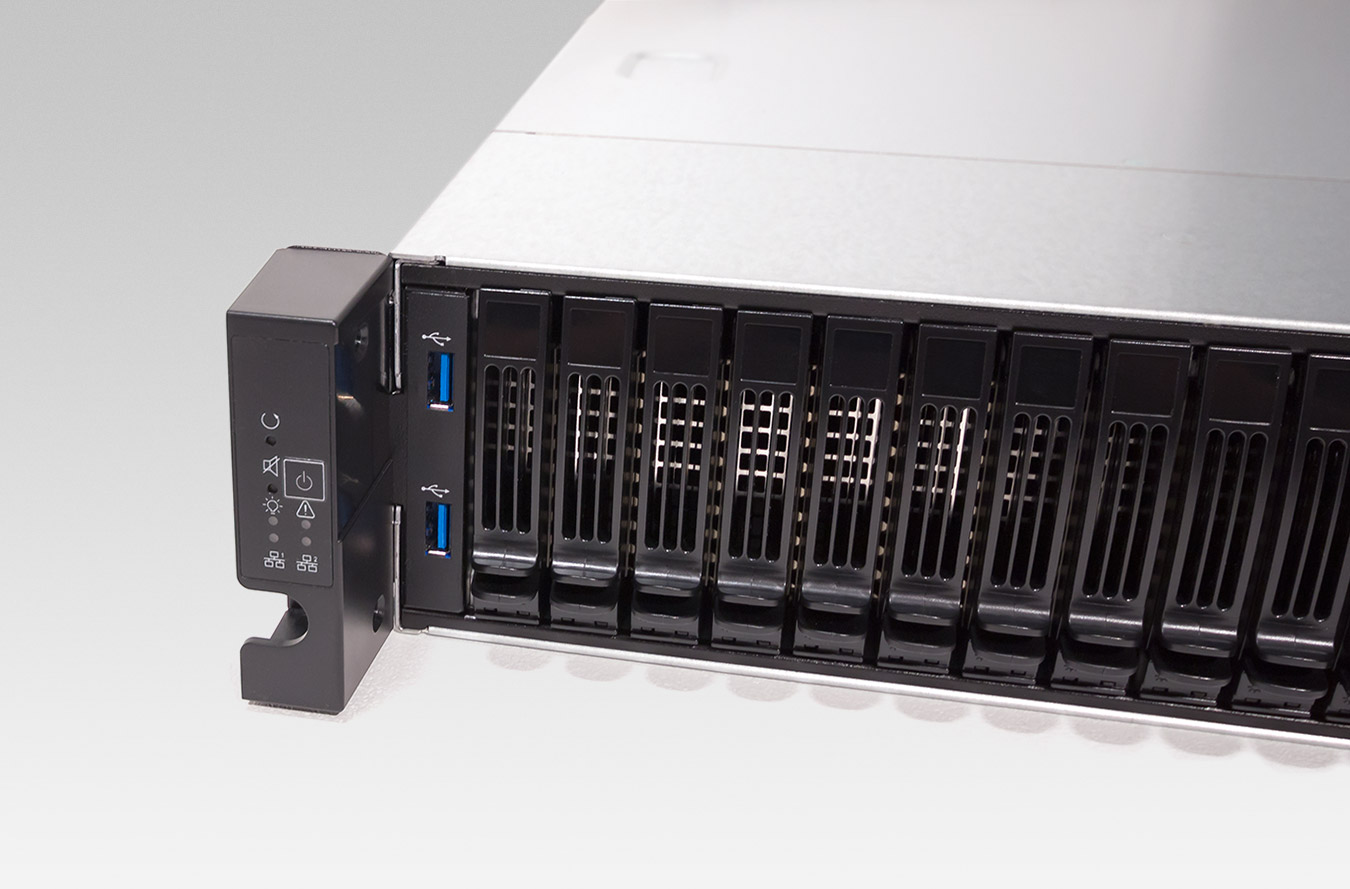

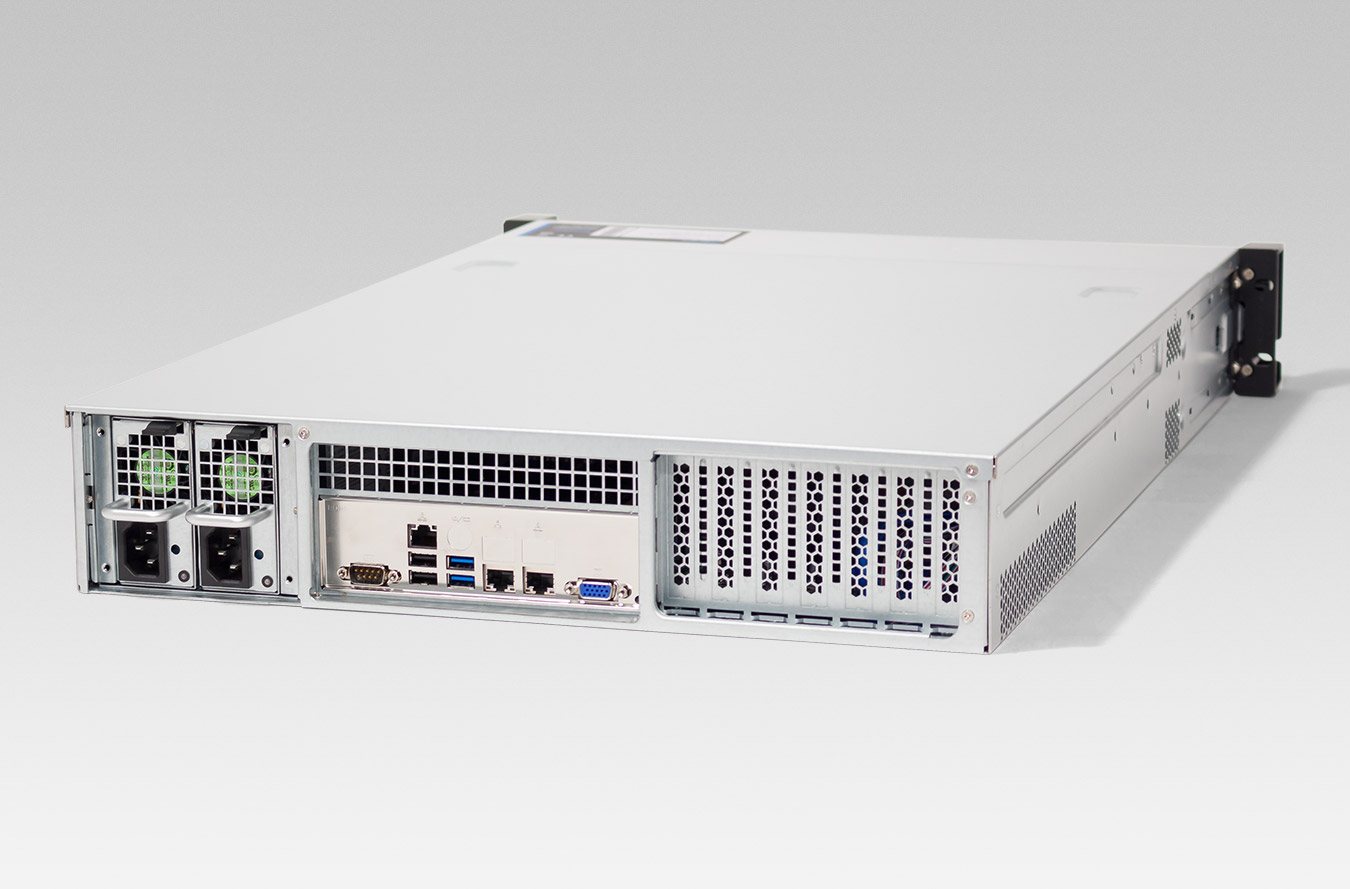

2U Storage Rack Server with up to 184 terabyte

KeyFacts Basesystem

  • high quality 19" rackmount chassis (2U) with up to 24 HDD slots (HotSwap) and up to 184 TB storage capacity
  • Open-E DSS V7 software for easy and fast integration (simple web based configuration)
  • supports NAS as well as iSCSI
  • compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)

Intel Single-CPU RECT™ ST-3662R24-N

  • single-processorarchitecture with Intel® Xeon® E3-1220v3 with 3.10 GHz, 8 MB Cache, QuadCore
  • 8 GB DDR3 RAM ECC
  • RAID-Controller for up to 24 HDDs (level: 0, 1, 5, 6, 10, 50, JBOD)
  • 2x GigaBit-LAN

Intel Dual-CPU RECT™ ST-3685R24-N

  • modern Intel Dual-processorarchitecture with 2x Intel® Xeon® E5-2609V4 with 1.70 GHz, 20 MB cache, EightCore
  • 32 GB DDR4 RAM ECC Reg.
  • RAID-Controller for up to 24 HDDs
    (level: 0, 1, 5, 6, 10, 50, JBOD)
  • 2x GigaBit-LAN

2U Storage Rack Server with up to 184 terabyte

KeyFacts Basesystem

  • high quality 19" rackmount chassis (2U) with up to 24 HDD slots (HotSwap) and up to 184 TB storage capacity
  • Open-E DSS V7 software for easy and fast integration (simple web based configuration)
  • supports NAS as well as iSCSI
  • compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)

Intel Single-CPU RECT™ ST-3662R24-N

  • single-processorarchitecture with Intel® Xeon® E3-1220v3 with 3.10 GHz, 8 MB Cache, QuadCore
  • 8 GB DDR3 RAM ECC
  • RAID-Controller for up to 24 HDDs (level: 0, 1, 5, 6, 10, 50, JBOD)
  • 2x GigaBit-LAN

Intel Dual-CPU RECT™ ST-3685R24-N

  • modern Intel Dual-processorarchitecture with 2x Intel® Xeon® E5-2609V4 with 1.70 GHz, 20 MB cache, EightCore
  • 32 GB DDR4 RAM ECC Reg.
  • RAID-Controller for up to 24 HDDs
    (level: 0, 1, 5, 6, 10, 50, JBOD)
  • 2x GigaBit-LAN
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Loading...

Basic system

Details
  •         Open-E Performance and Certification Report

Case


RAID controller

Details


  •         Open-E Performance and Certification Report

Enterprise SSD-Caching

SSD-Caching is the best choice for hard-drive-based raid-arrays. The caching algorithm speeds up the read and write operations as well as the total I/O operations per second (IOPS) and lowers the latency by factor 25. Bigger hard drive arrays should be combined with a bigger SSD.

Details


Controller Cache Protection

Short-term data storage to protect data in RAID-Cache in case of power outage.

  • by Adaptec 7805Q is the cache protection already included.

Drives

24 in hot-swap trays

    Details
    • Enterprise SAS HDD
    • SATA HDD
    Details
    • Enterprise SSDs with optimized performance for read-intensive applications
    • Enterprise SSDs with optimized performance for read and write intensive applications
    Details
    • Enterprise SSDs with optimized performance for read-intensive applications
      (ERP, CRM, Data Warehouse, File Server, Database Analytics, Video Streaming)
    • Enterprise SSDs with optimized performance for read and write intensive applications
      (Databases, OLTP, Financial Transactions, E-Commerce, E-Mail / Messaging, Virtual Environments)
    • Enterprise SSDs with optimized performance for write intensive applications
      (High Performance Caching/Tiering, SDS, OLTP Databases, Virtual Environments)
    • Need more?   show more options
      Too much?   show less options
    Details
    • Disk on Module
      SATA DOMs (Disk On Module) are small flash modules that can be connected directly to the SATA port of the mainboard. They are perfectly suited for use as boot drives or OS installation devices.

    RAID configuration



    Additional network cards

    Limit selection

    Details













    Uninterruptible power supply (UPS)

    Protected from power interruptions?
    Choose from a wide variety  RECT Accessories - UPS

      Open-E Data Storage Software

      Notice to Open-E: You just have to licence the net capacity of your Raid, not the sum of the physical disk capacity


      Open-E Support License







      Service & Support Level

      Location:

      Details
      • Bring-In Warranty
        Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
        Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
      • Pick-Up Warranty
        Technical support: by phone and e-mail, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
      • On-Site (3BD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
      • On-Site (NBD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

      Alternativen:



      2U Storage Rack Server with up to 176 Terabyte

      Storage - NAS - RECT™ ST-36xxR8-N - 2U Storage Rack Server with up to 176 Terabyte

      RECT™ ST-36xxR8-N

      • 2U storage system with up to 8 hard disks and a storage capacity up to 176 TB
      • 12Gbit SAS backplane
      • Based on a platform tested and certified by Open-E, combined with single or dual Intel® Xeon® processors
      • Open-E Data Storage Software V7 or Microsoft Windows Storage Server 2016
      • Compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)



      2U Storage Rack Server with up to 264 Terabyte

      Storage - NAS - RECT™ ST-36xxR12-N - 2U Storage Rack Server with up to 264 Terabyte

      RECT™ ST-36xxR12-N

      • 2U storage system with up to 12 hard disks and a storage capacity up to 264 TB
      • 12Gbit SAS backplane with Expander
      • Based on a platform tested and certified by Open-E, combined with single or dual Intel® Xeon® processors
      • Open-E Data Storage Software V7 or Microsoft Windows Storage Server 2016
      • Compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)



      3U Storage Rack Server with up to 352 Terabyte

      Storage - NAS - RECT™ ST-37xxR16-N - 3U Storage Rack Server with up to 352 Terabyte

      RECT™ ST-37xxR16-N

      • 3U storage system with up to 16 hard disks and a storage capacity up to 352 TB
      • 12Gbit SAS backplane with Expander
      • Based on a platform tested and certified by Open-E, combined with single or dual Intel® Xeon® processors
      • Open-E Data Storage Software V7 or Microsoft Windows Storage Server 2016
      • Compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)



      4U Storage Rack Server up to 528 Terabyte

      Storage - NAS - RECT™ ST-38xxR24-N - 4U Storage Rack Server up to 528 Terabyte

      RECT™ ST-38xxR24-N

      • 4U storage system with up to 24 hard disks and a storage capacity up to 528 TB
      • 12Gbit SAS backplane with Expander
      • Based on a platform tested and certified by Open-E, combined with single or dual Intel® Xeon® processors
      • Open-E Data Storage Software V7 or Microsoft Windows Storage Server 2016
      • Compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)



      Storage Tower up to 144 Terabyte

      Storage - NAS - RECT™ ST-28xxR8-N - Storage Tower up to 144 Terabyte

      RECT™ ST-28xxR8-N

      • Storage tower with up to 8 hard disks and a storage capacity up to 144 TB
      • Based on a platform tested and certified by Open-E, combined with single or dual Intel® Xeon® processors
      • Open-E Data Storage Software V7 or Microsoft Windows Storage Server 2016
      • Compatible with all established environments (VMware, Citrix, Microsoft, Linux, Mac OS X)

      RECT™ ST-36xxR24-N

      €
      Main configuration
      3,209.00
      Configuration:
      Complete Configuration
      Current price


      Main configuration: 3,209.00 €
      Complete Configuration: 0,00 €
      Current price: 0,00 €   (Plus VAT)
      RECT-ID: 2248
      Last update: 22.03.2023
