RECT™ RS-8588G4

RECT-ID:2555

RECT™ RS-8588G4

RECT-ID: 2555
Ready for shipment in about 7-10 workdays
Express-shipping: start request...

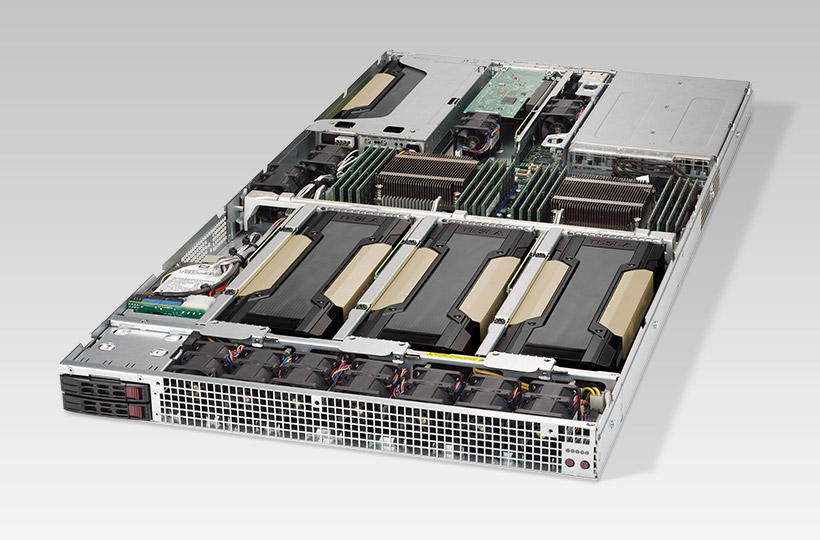

1U Dual Xeon Scalable-R Rack Server for up to 4 Graphics Cards

  • A new dimension of GPU Computing: maximum Acceleration and highest Versatility for all Workloads
  • HPC, Artificial Intelligence, Deep Learning, Big Data Analytics, Research Lab, Business Intelligence
  • equipped with up to four GPU Cards, from Geforce GTX/RTX to Tesla V100
  • equipped with the all new Intel® Xeon® Scalable R Processors with Cascade Lake SP microarchitecture
  • featuring widespread Remote Management functions

KeyFacts

  • driven by two CPUs, scalable up to 28 Cores and 56 Threads, up to 3.30 GHz clock speed and 38.5 MB L3-Cache per CPU
  • scalable memory up to 768 GB DDR4-2933 ECC Reg.
  • scalable traditional storage with SSDs up to 15,2 TB
  • High-quality 19" Rack Server Case with 2 hot-swap trays
  • redundant power supply, 80PLUS Titanium

Supported operating systems

  • Microsoft Windows Server
  • Microsoft Windows 10/11
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • Citrix XenServer 7/8

1U Dual Xeon Scalable-R Rack Server for up to 4 Graphics Cards

  • A new dimension of GPU Computing: maximum Acceleration and highest Versatility for all Workloads
  • HPC, Artificial Intelligence, Deep Learning, Big Data Analytics, Research Lab, Business Intelligence
  • equipped with up to four GPU Cards, from Geforce GTX/RTX to Tesla V100
  • equipped with the all new Intel® Xeon® Scalable R Processors with Cascade Lake SP microarchitecture
  • featuring widespread Remote Management functions

KeyFacts

  • driven by two CPUs, scalable up to 28 Cores and 56 Threads, up to 3.30 GHz clock speed and 38.5 MB L3-Cache per CPU
  • scalable memory up to 768 GB DDR4-2933 ECC Reg.
  • scalable traditional storage with SSDs up to 15,2 TB
  • High-quality 19" Rack Server Case with 2 hot-swap trays
  • redundant power supply, 80PLUS Titanium

Supported operating systems

  • Microsoft Windows Server
  • Microsoft Windows 10/11
  • Linux (Red Hat, SUSE, Ubuntu LTS, Debian, CentOS)
  • Citrix XenServer 7/8
Configuration
Basic configuration

Well priced: Please reset the configuration to have the basic configuration.

Recommended configuration

Choose the CORETOs recommended configuration.

Windows Server 2022
Loading...

System platform


Trusted Platform Module

Remote Management Interface on Board

IPMI 2.0, KVM over LAN, Virtual Media over LAN, Remote Power on/off and Reset, Remote Hardware Monitoring, Embedded Web-Server


Processor

Details
  • Intel® Xeon® Scalable Bronze Processors
    Optimized performance for small businesses and basic storage Servers
    up max. 8 CPU Cores, 2133 MHz RAM speed
  • Intel® Xeon® Scalable Silver Processors
  • Intel® Xeon® Scalable Gold Processors
  • Need more?   show more options
    Too much?   show less options

Memory

Details
  • Need more?   show more options
    Too much?   show less options

Graphics card

(single@x16, dual@x16/x16, triple@x16/x16/x16, quad@x16/x16/x16/x16 mode)

Details
  • Nvidia Quadro/RTX Series




  • Nvidia Tesla GPU Accelerators
    optimized for HPC and Deep Learning Applications
  • AMD Radeon Series




  • Need more?   show more options
    Too much?   show less options

Drives

2 in hot-swap trays, 2 internal

    Details
    • Enterprise SSDs with optimized performance for read-intensive applications
    • Enterprise SSDs with optimized performance for read and write intensive applications

    2.5" SSDs, mounted internal, connected with the mainboard

    Details
    • SATA SSD
    • High performance data according to IOPS, lower TBW values. Optimized performance for read-intensive applications.
    • Excellent performance combined with very high endurance. Optimized performance for read and write intensive applications
    Details
    • M.2 NVMe SSD
      M.2 NVMe SSDs are very compact and fast plug-in cards that are connected via PCI-Express (up to 32 Gbit/s) on the motherboard. They are perfectly suited for use as boot drives or OS installation devices.

    Controller

    Details
    • Onboard controller
      Host-based solution with basic requirements - for price-optimized entry.

    RAID configuration



    Network


    Details





    Details






    Limit selection

    Details





    • Copper patch cable (RJ-45), Cat.6A, 500MHz, halogen free
      Patch cable in the highest quality for a professional cabling in Gigabit and 10 Gigabit range (up to 100m).
      Cable sheath halogen free, full copper core, S/FTP (PiMf) 4x2xAWG26/7, gold plated contacts.
      For use in data centers and server racks

    Uninterruptible power supply (UPS)

    Protected from power interruptions?
    Choose from a wide variety  RECT Accessories - UPS

      Operating System

      The selected operating system is factory-installed and includes 30 days installation support, by phone or email.
      Further MS editions plus MS-Open licenses can be found under RECT Accessories. Further language editions on demand.

      language:

      Details

      • Please specify your preferred operating system (version, language):
      • Microsoft Windows Server 2022






      • Microsoft Windows Server 2019




      • Microsoft Windows 11/10






      • License Hints for Windows Server 2019/2022

        For correct licensing of the Standard Edition and Datacenter Edition with the chosen precessor equipment – - – a core license is required.
        (Show more details regarding virtualisation licensing)
      • Need more?   show more options
        Too much?   show less options

      Additional Core Licenses for Windows Server 2022

      To license more cores than provided by the 16-core or 24-core base license.

      Additional Core Licenses for Windows Server 2019

      To license more cores than provided by the 16-core base license.

      Operating System CALs

      • Standard CALs for Device and/or User
        In addition to the server licenses, you need licenses for all clients accessing the server (Client Access Licenses). These CALs may be licensed by users (User CALs) or devices (Device CALs). A User CAL is recommended when a user accesses the server with different devices. A Device CAL is favourable when one device is used by different users to access the server. All CALs are downward compatible with earlier releases of Microsoft Server.
      • Remote Desktop Services CALs
        Required for the provision and use of Remote Desktop Services based on the number of users or devices accessing the service.


      Service & Support Level

      Location:

      Details
      • Bring-In Warranty
        Technical support: by e-mail, effective support with initial operation (to be carried out within 30 days after delivery).
        Rapairs: components or the whole system will be repaired or replaced subsequently to reshipment, we will pay the costs for transport and logistics within 30 days after delivery.
      • Pick-Up Warranty
        Technical support: by phone and e-mail, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: pick-up and return service for replacement of defective components or the whole system. Components will be replaced in the form of an advanced warranty replacement with guaranteed express delivery.
      • On-Site (3BD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within three business days for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.
      • On-Site (NBD) Warranty
        Technical support: by phone and e-mail with prioritised handling directly after submission, effective support with initial operation, installation and configuration (to be carried out within 30 days after delivery), support with software updates and patches (within the scope of current standard software, throughout the stipulated time period).
        Repairs: on-site service with guaranteed reaction time within the next business day for fault repair at the site of the system, optionally with advanced warranty replacement of defective components if handling can be speeded up that way.

      RECT™ RS-8588G4

      €
      Main configuration
      4,786.00
      Configuration:
      Complete Configuration
      Current price


      Main configuration: 4,786.00 €
      Complete Configuration: 0,00 €
      Current price: 0,00 €   (Plus VAT)
      RECT-ID: 2555
      Last update: 22.03.2023
