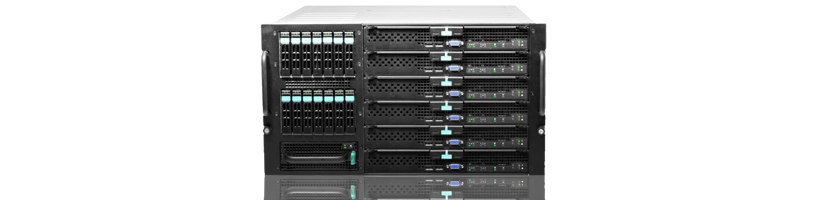

Intel Modular Server V2 (2,5")

Newest chassis version "V2" with newer Management Module,
with 14x 2,5" HDD; six bays for Compute Modules; I/O Fan Module in the front; 2x Main Fan Modules on the back; 6U; dimensions (WxHxD): 445mm x 262mm x 721mm

RAID 0, 1, 1E, 5, 6, 10, 50 and 60; incl. x4 Mini-SAS-Port Module for external storage; incl. BBU

Second Module for redundancy of Storage Module; additional interface for external storage.

For concurrent usage of on virtual drive assigned to several Compute Modules

For copying virtual drives

Please notice: Only in combination with Intel Shard LUN Key
Easily create, delete and manage virtual machines. Additionally move virtual machines from one compute module to another using Live Migration.

Offers Backup functions to backup Management-, Storage- and Netzwerkproperties. Also applicable to move properties to an other Modular Server.

USB 2.0

For usage of one Compute-Module

For usage of 2 or 3 Compute-Modules

For usage of 4-6 Compute-Modules

Remote management on LAN (web-based); real-time hardware control; remote on/off; external 10/100 ethernet interface; external serial interface

12 internal ports for inter-connection of Compute Modules; 10 external ports (all 10/100/1000 full duplex)

Only necessary when Mezzanine Card with 2 additional network interfaces in Compute Module is used. Alternative usage as additional external switch

for easy access

including 30 days return service, technical E-Mail support and driver support (E-Mail)
